Trailers / Utility

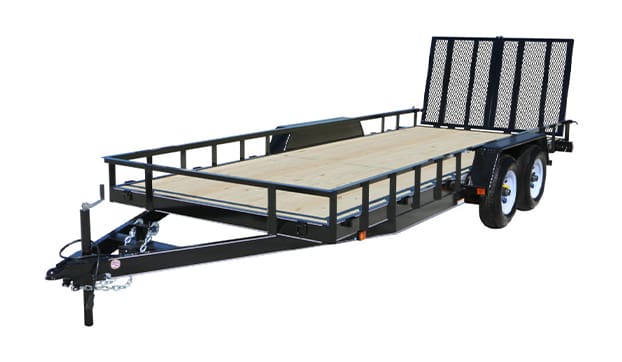

10K Tandem Axle Utility Trailer

The most heavy-duty of our utility trailers, this model has all the muscle you need to get your hauling jobs done. Its tandem axles give it the solid foundation to carry more weight, and its tough, treated wood floors are ready for you to load up all your gear. Plus, its open design gives all kinds of options and versatility to meet your hauling needs. If you're looking for a no-nonsense workhorse that can do it all, this is the trailer for you.

Available Sizes

  • 7' x 16'
Arrow/ white
View Models
10K TANDEM AXLE UTILITY TRAILER with wood floor and gate
  • GVWRGroup Copy 2?: 9,990 lbs.
  • Empty Weight: 2,200 lbs.
  • Payload CapacityGroup Copy 2?: 7,790 lbs.
  • Leaf Springs: 5
  • Frame: 5" Channel
  • Uprights: 2.5" x 2.5" Angle
  • Uprights Height: 14"
  • Top Rail: 2.5" x 2.5" Angle
  • Sides: Open
  • Tongue: 5" Channel A-Frame
  • Coupler: 5" Channel A-Frame
  • Jack: 2,000 lb. Rated Top Wind
  • Tires: 15" ST225x15
  • Wheels: White Mod
Capacity and construction varies by model. See individual model information pages for complete details.

Models

7' x 16' 10K Tandem Axle Utility Trailer
  • Model: 7X16HDLAND
  • Overall W x L: 100" x 238"
  • Bed W x L: 82" x 192"
  • Gate W x H: 78" x 49"
  • Empty Weight: 2,200 lbs.
  • Payload Capacity: 7,790 lbs.
  • Floor: Wood, Treated 2x8

Find your trailer in
a store near you

Arrow/ white
Find a Dealer

Features

TANDEM AXLE

Carry more weight and feel confident doing it with a tandem axle. With an extra set of tires, a tandem axle enables a trailer to haul more weight during towing without losing stability—on city streets or at highway speed.

CHANNEL A-FRAME TONGUE

Mitered at the point where the A-frame intersects with the trailer's frame, a channel A-frame tongue bends to follow the frame back to the suspension—stiffening the chassis and lengthening the life of both the trailer and tongue. Plus, channel can be completely coated which further decreases the opportunity for corrosion.

LED LIGHTS

Be seen. We equip our trailers with LED lights that offer a brighter light that lasts longer than conventional, incandescent bulbs—keeping you safe at night by making sure whoever is behind you, sees you.
