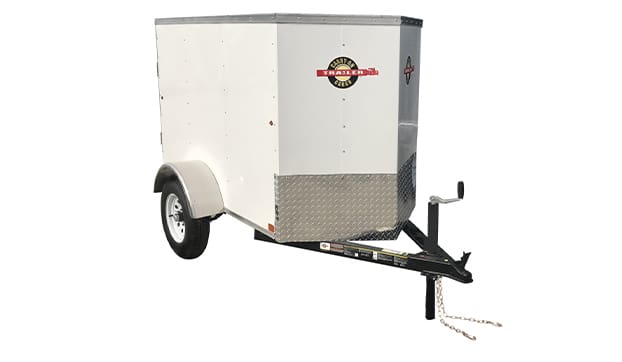

4' x 6' 2K V-Nose Flat Roof

Model Number:

4x6cgvec-13

Arrow/ white
View Specs

Model Information:

  • Overall W x L: 59" x 109"
  • Bed W x L: N/A x N/A
  • Gate W x H: ?" x ?"
  • Empty Weight: 450 lbs.
  • Payload Capacity: 1,550 lbs.
  • GVWR: 2,000 lbs.
  • Volume Capacity: N/A yd.

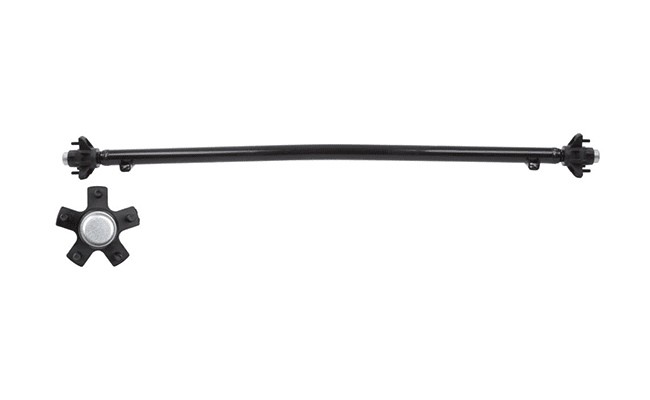

  • Axle 1: 2,000 lb. Idler Axle
  • Leaf Springs: 2
  • Floor: 3/4" Plywood
  • Frame: 2" x 3" Tube
  • Frame On Center: 27"
  • Wall Frame On Center: 24"
  • Interior Walls: 1/8" Plywood
  • Roof Frame On Center: 24"
  • Tongue: 3" Channel A-Frame Underslung (?)
  • Coupler: 2" A-Frame
  • Jack: 2,000 lb. Rated Top Wind
  • Tires: 13" 175X13
  • Wheels: White Mod
  • Fenders: Aluminum, Smooth
  • Fender Wells, Inner: ?
  • Lights: LED
  • Overall Height: 68"
  • Interior Height: 48"
  • Interior Width: 41.5"
  • Interior Length: 84"
  • Side Wall Length: ?
  • Nose Length: ?
  • Front Horizontal Stone Guard: 12" H Diamond Plate with Trim
  • Deck Height: ?
  • Rear Gate Style: Single Door
  • Approach Angle: ?
