Overall W x L:
65" x 114-1/2"
-
Deck W x L:
49" x 72"
-
Gate W x L:
46" x 38"
-
Empty Weight:
300 lbs.
-
Payload Capacity:
1,700 lbs.
-
Coupler:
2" Straight (199T)
-
Tongue Type:
Straight 2" x 3" Steel Tube
-
Length: Frame to Coupler:
37-1/2"
-
Level Tongue Height:
12-1/2"
-
Safety Chains:
Class I, 24" x 3/16" w/ Hooks (638T)
-
Flooring Material:
Steel Mesh
-
Deck Ht. from Ground:
14"
-
Frame:
2" x 2" x 1/8" Steel Angle
-
Uprights:
1-1/2" x 1-1/2" x 1/8" Steel Angle
-
Upright Height:
9-1/2"
-
Sides:
Open
-
Top Rail:
2" x 2" x 1/8" Steel Angle
-
Cargo Hold:
4 Steel Angle Brackets
-
Fenders:
7" x 24" Steel Jeep-Style, Open Back (7240T)
-

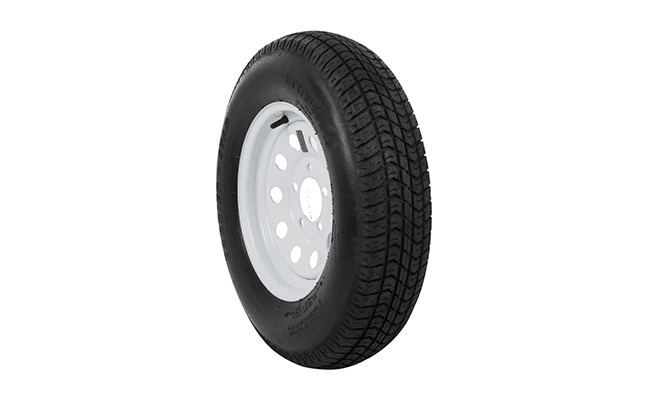

Tires:
12" 4.80-12 Bias 6-Ply (4:80X12PTW-BLACK)
-
Wheels:
Black Mod
-

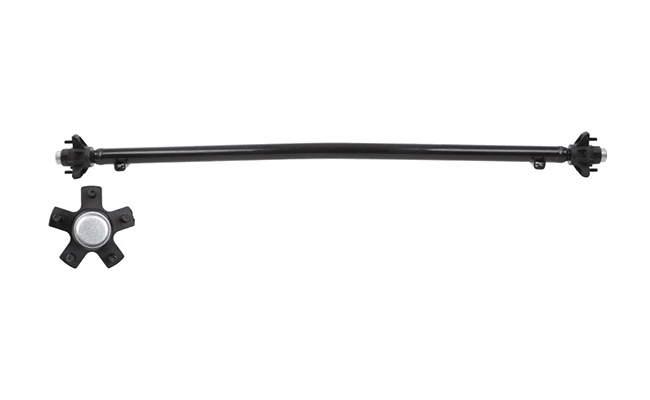

Axle Type:
Single 2,000 Lbs. E-Z Lube, 60"/47-1/4" (2K6047EZ)
-
GVWR:
2,000 Lbs.
-
Leaf Springs:
2-Leaf Eye-to-Slipper (351T)
-
U-Bolt:
3/8" Round (652T)
-
Tie Plate:
Small 3-1/2" x 3-1/2" (648T)
-
Hub Kit:
5 Lugs on 4-1/2" Pattern, 1,250 Lbs. (155T)
-
Dust Cap:
E-Z Lube (851T)
-
Spindle:
1-1/16", Max 1,250 Lbs. Capacity (151T)
-
Bearing:
1-1/16" Inner and Outer Bearing Kit (500T)
-
Grease Seal:
1-1/2" (495T)
-

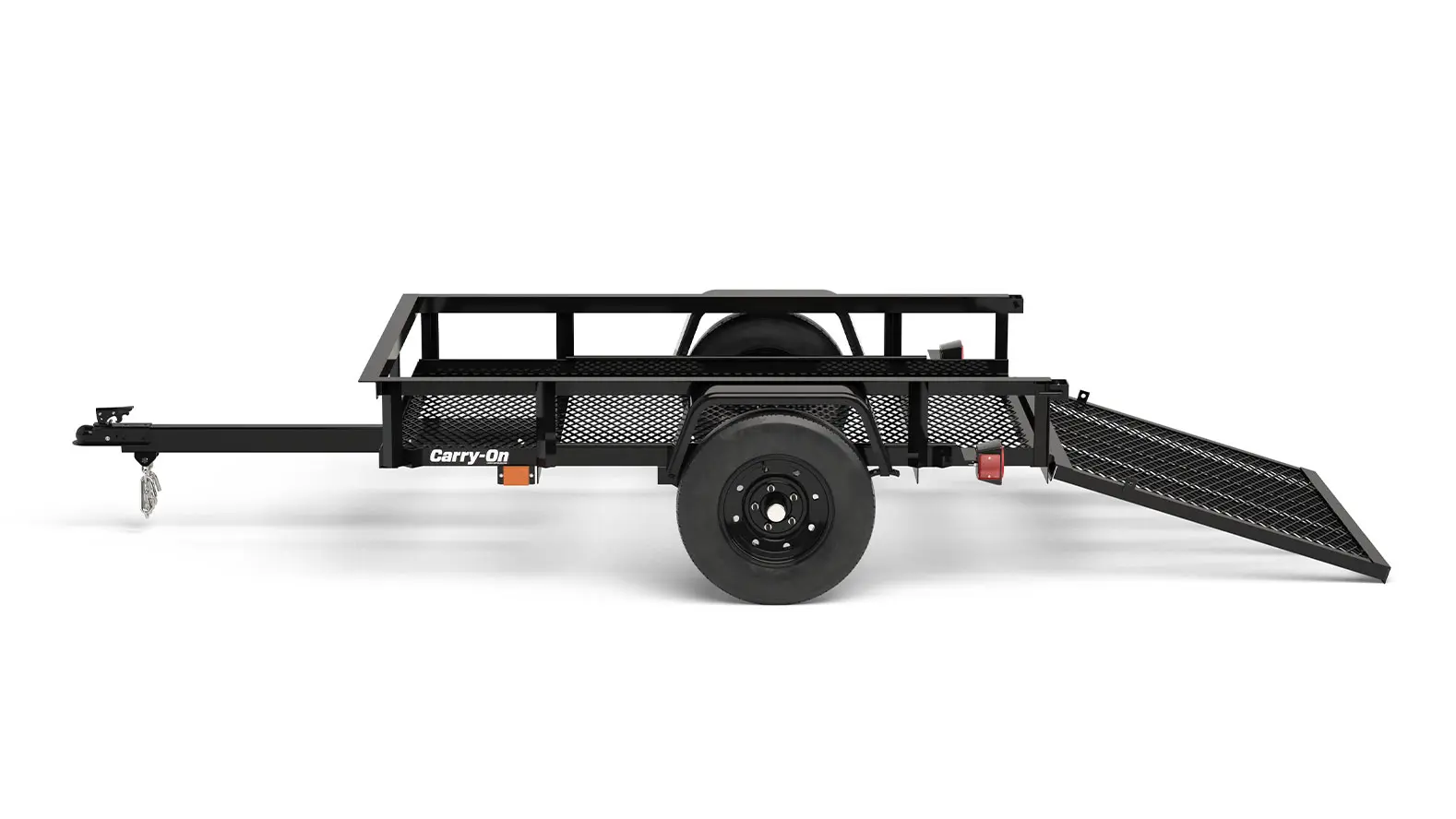

Gate Style:
Fixed Ramp Gate
-
Rear Latch:
Spring Latch (847T)
-
Plug Type:
4-Way Flat
-
Tail Lights:
Roadside (813T), Curbside (814T)
-
License Plate Illumination:
Incorporated with Roadside Tail Light
-
Marker Lights:
Amber, Surface Mount (817-2T)
