Models / 3K Radius Front Flat Roof

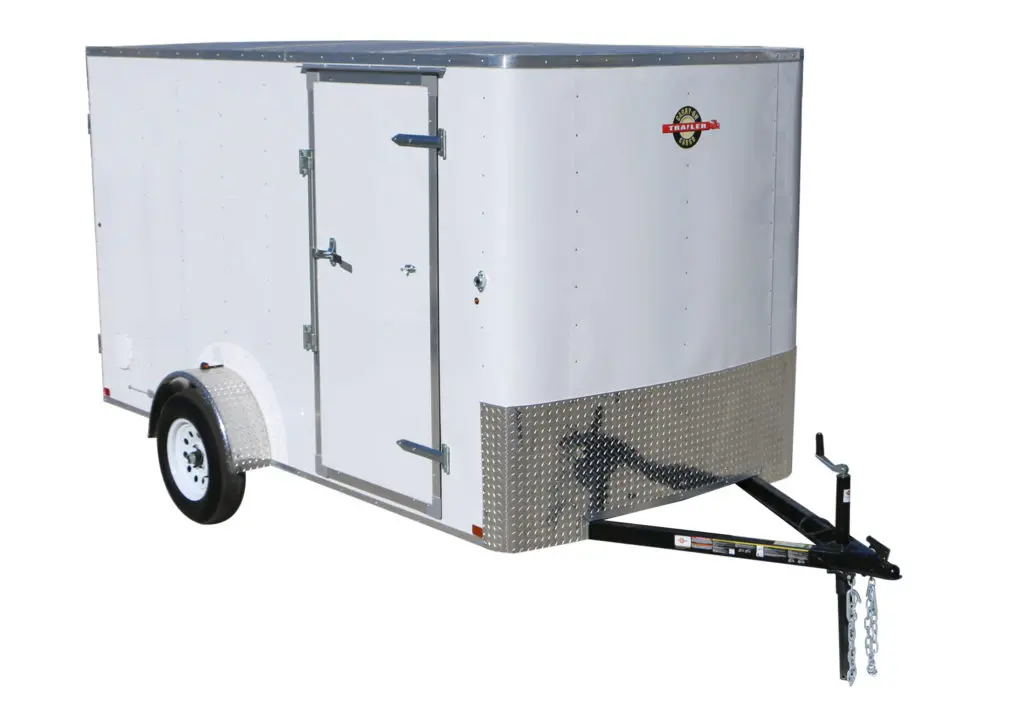

5' x 10' 3K Radius Front Flat Roof

Model Number:

5x10cgrcm

Arrow/ white
View Specs

Model Information:

  • Overall W x L: 79" x 168"
  • Bed W x L: N/A x N/A
  • Gate W x H: ?" x ?"
  • Empty Weight: 990 lbs.
  • Payload Capacity: 2,000 lbs.
  • Floor: 3/4" Plywood
  • GVWR: 2,990 lbs.
  • Volume Capacity: N/A yd.
  • Axle 1: 3,500 lb. E-Z Lube Brake Axle
  • Leaf Springs: 3
  • Floor: 2" x 3" Tube
  • Frame: 24"
  • Sides: 16"
  • Wall Frame On Center: 3/8" Plywood
  • Interior Walls: 24"
  • Roof Frame On Center: 2" x 3" Tube A-Frame Through
  • Tongue Extension: 2" A-Frame
  • Coupler: 2,000 lb. Rated Top Wind
  • Jack: 15" 205X15
  • Tires: White Mod
  • Wheels: Steel Diamond Plate
  • Fenders: ?
  • Fender Wells, Inner: LED
  • Lights: 84"
  • Overall Height: 60"
  • Interior Height: 57"
  • Interior Width: 116"
  • Interior Length: ?
  • Side Wall Length: ?
  • Nose Length: 16" H Diamond Plate with Trim
  • Front Vertical Stone Guard: ?
  • Deck Height: Ramp Door with Ramp Extension
  • Rear Gate Style: ?
  • Side Gate Ramp W x L: 32" x ?"
