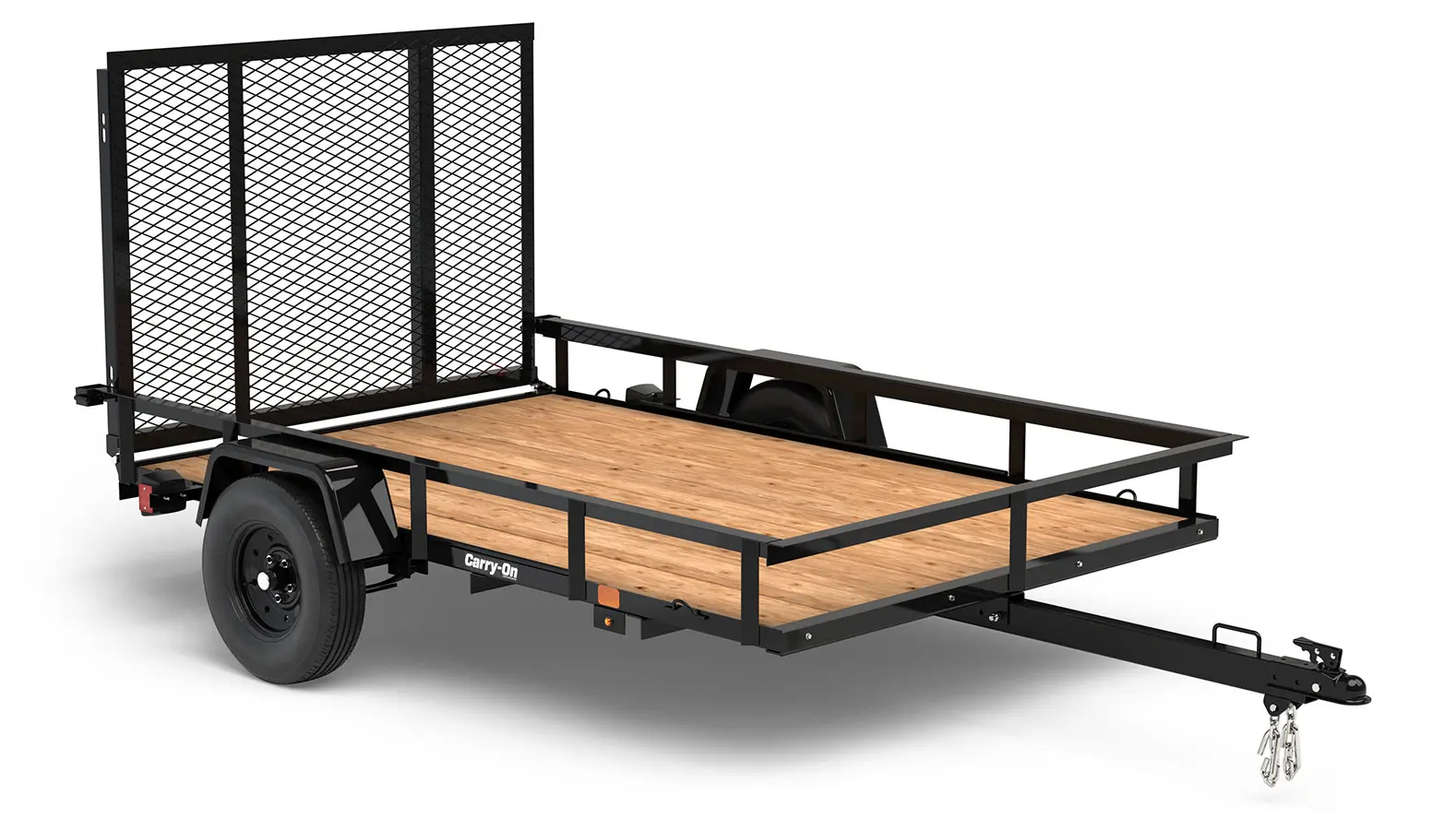

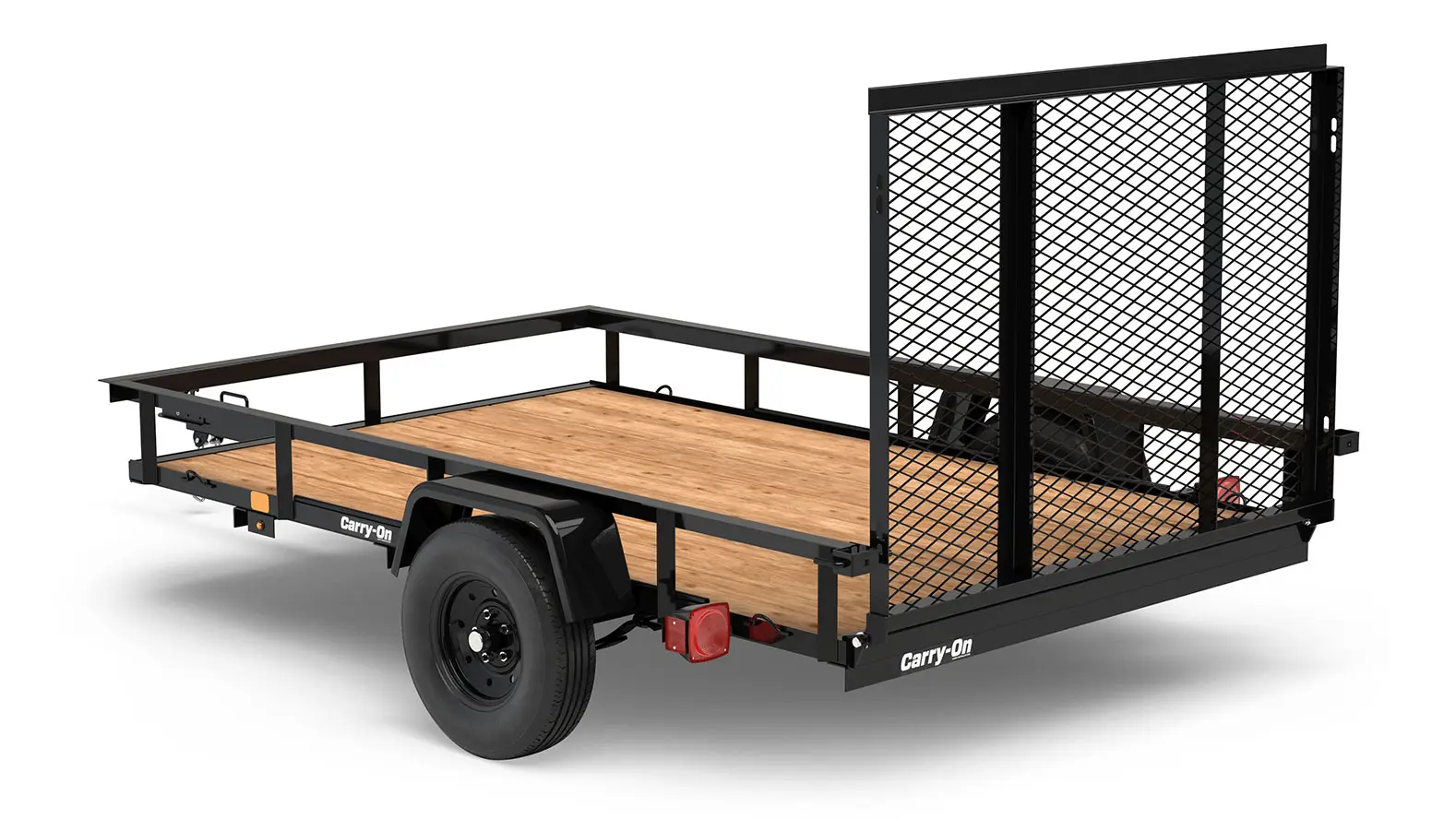

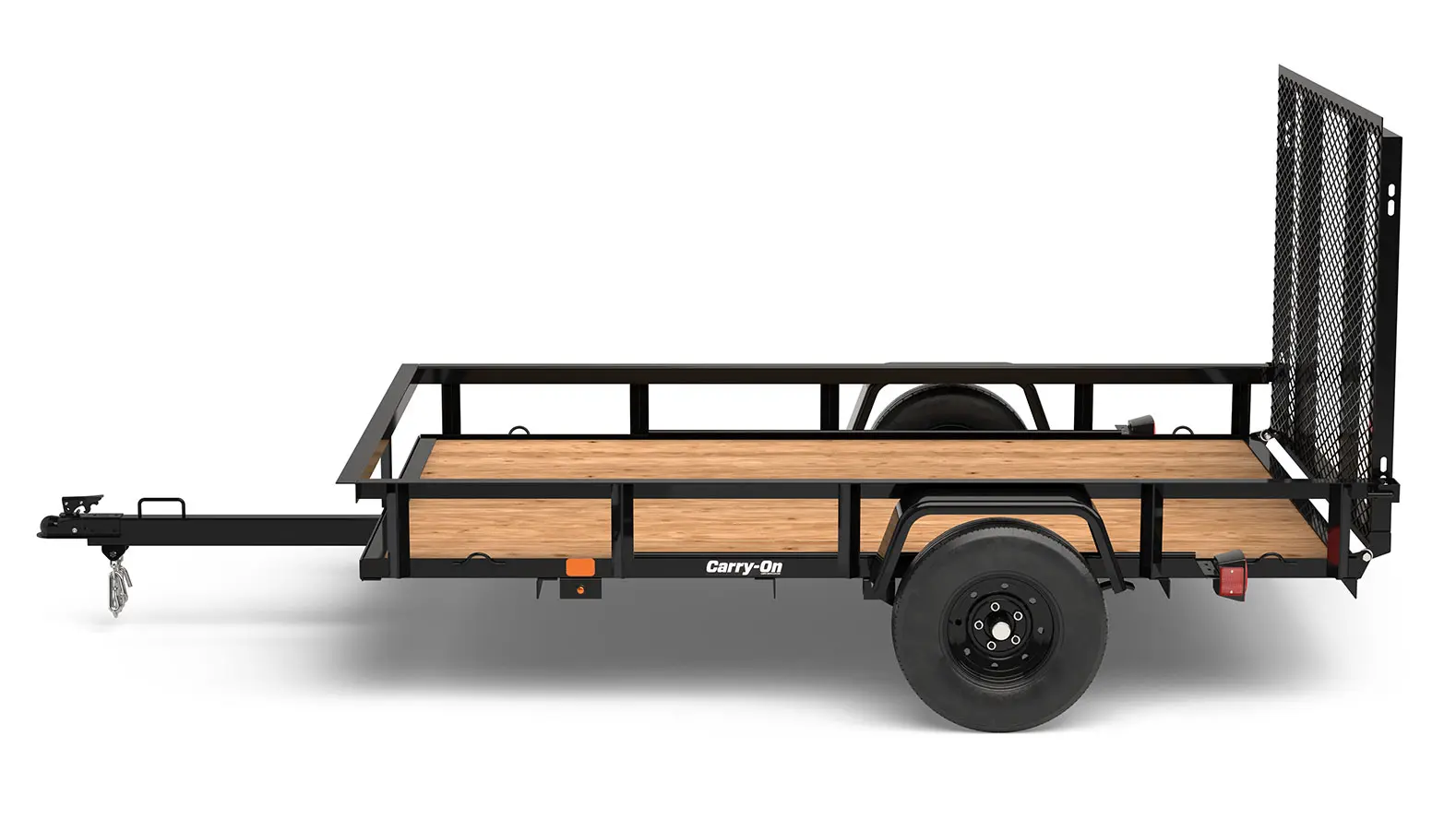

5' x 8' GWE2K Series

Model Number:

5x8gwe2k

Arrow/ white
View Specs

Model Information:

  • Overall W x L: 74" x 137"
  • Deck W x L: 60" x 96"
  • Gate W x L: 58" x 42"
  • Empty Weight: 500 lbs.
  • Payload Capacity: 1,500 lbs.
  • Coupler: 2" Straight (199T)
  • Tongue Type: Straight with Handle, 2" x 3" Steel Tube
  • Length: Frame to Coupler: 37-1/2"
  • Level Tongue Height: 12-1/2"
  • Safety Chains: Class I, 24" x 3/16" w/ Hooks (638T)
  • Flooring Material: 2x Treated Wood
  • Deck Height from Ground: 15-1/4"
  • Frame: 2" x 2" x 1/8" Steel Angle
  • Uprights: 2" x 2" x 1/8" Steel Angle
  • Upright Height: 9-1/2"
  • Sides: Open
  • Top Rail: 2" x 2" x 1/8" Steel Angle
  • Cargo Hold: 4 Frame Welded Loops
  • Fenders: 7" x 24" Steel Jeep-Style, Open Back (7240T)
  • Tires: 12" 4.80-12 Bias 6-Ply (4:80X12PTW-BLACK)
  • Wheels: Black Mod
  • Axle Type: Single 2,000 Lbs. E-Z Lube 71"/58-1/2" (2K7158EZ)
  • GVWR: 2,000 Lbs.
  • Leaf Springs: 2-Leaf Eye-to-Slipper (351T)
  • U-Bolt: 3/8" Round (652T)
  • Tie Plate: Small 3-1/2" x 3-1/2" (648T)
  • Hub Kit: 5 Lugs on 4-1/2" Pattern, 1,250 Lbs. (155T)
  • Dust Cap: E-Z Lube (851T)
  • Spindle: 1-1/16", Max 1,250 Lbs. Capacity (151T)
  • Bearing: 1-1/16" Inner and Outer Bearing Kit (500T)
  • Grease Seal: 1-1/2" (495T)

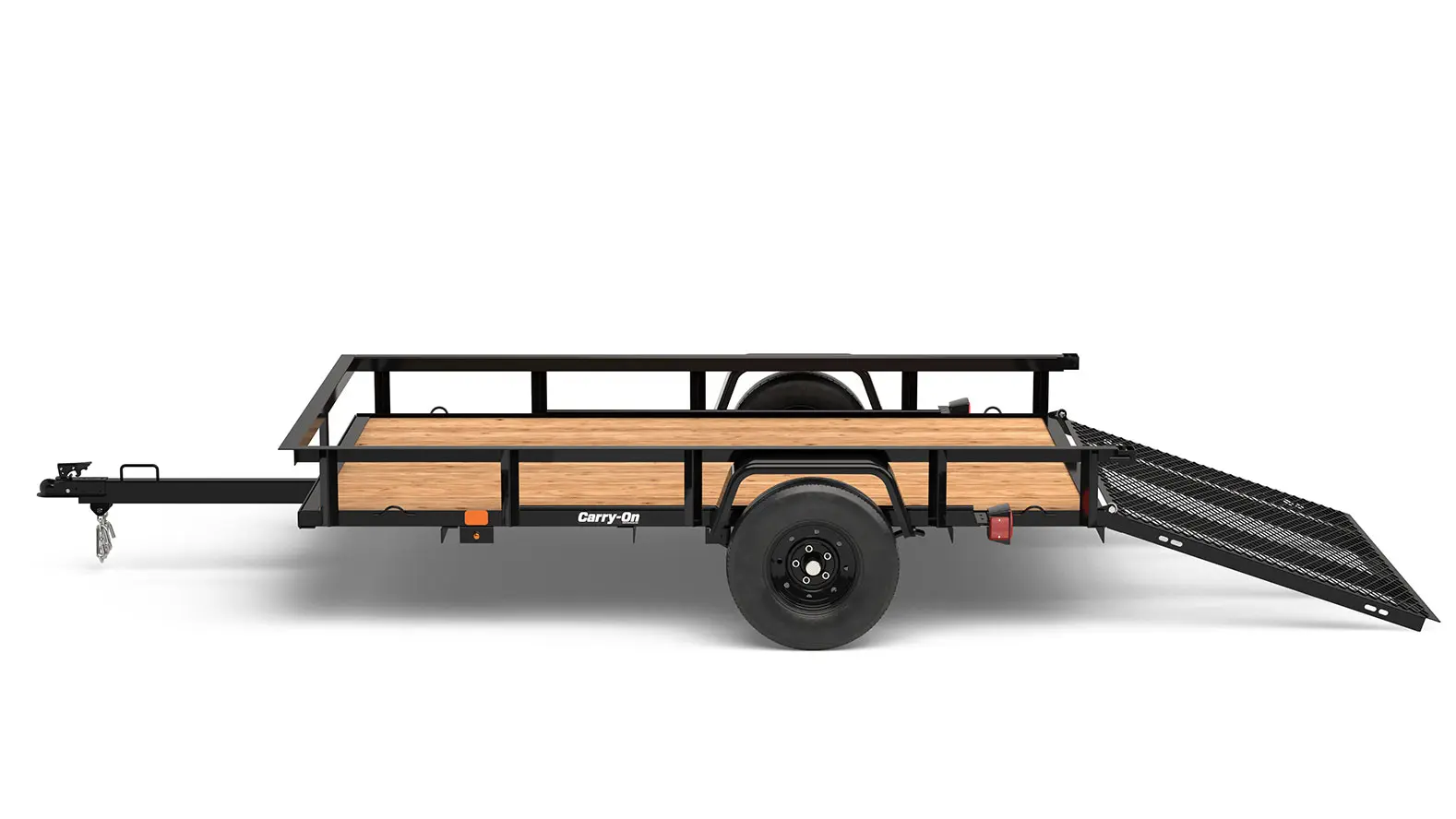

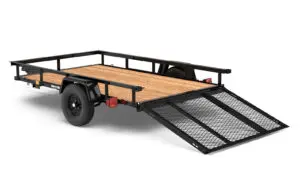

  • Gate Style: Removable Ramp Gate
  • Rear Latch: Spring Latch (847T)
  • Plug Type: 4-Way Flat
  • Tail Lights: Road Side (813T), Curb Side (814T)
  • License Plate Illumination: Incorporated with Road Side Tail Light
  • Marker Lights: LED Amber Penny Light (881T)
