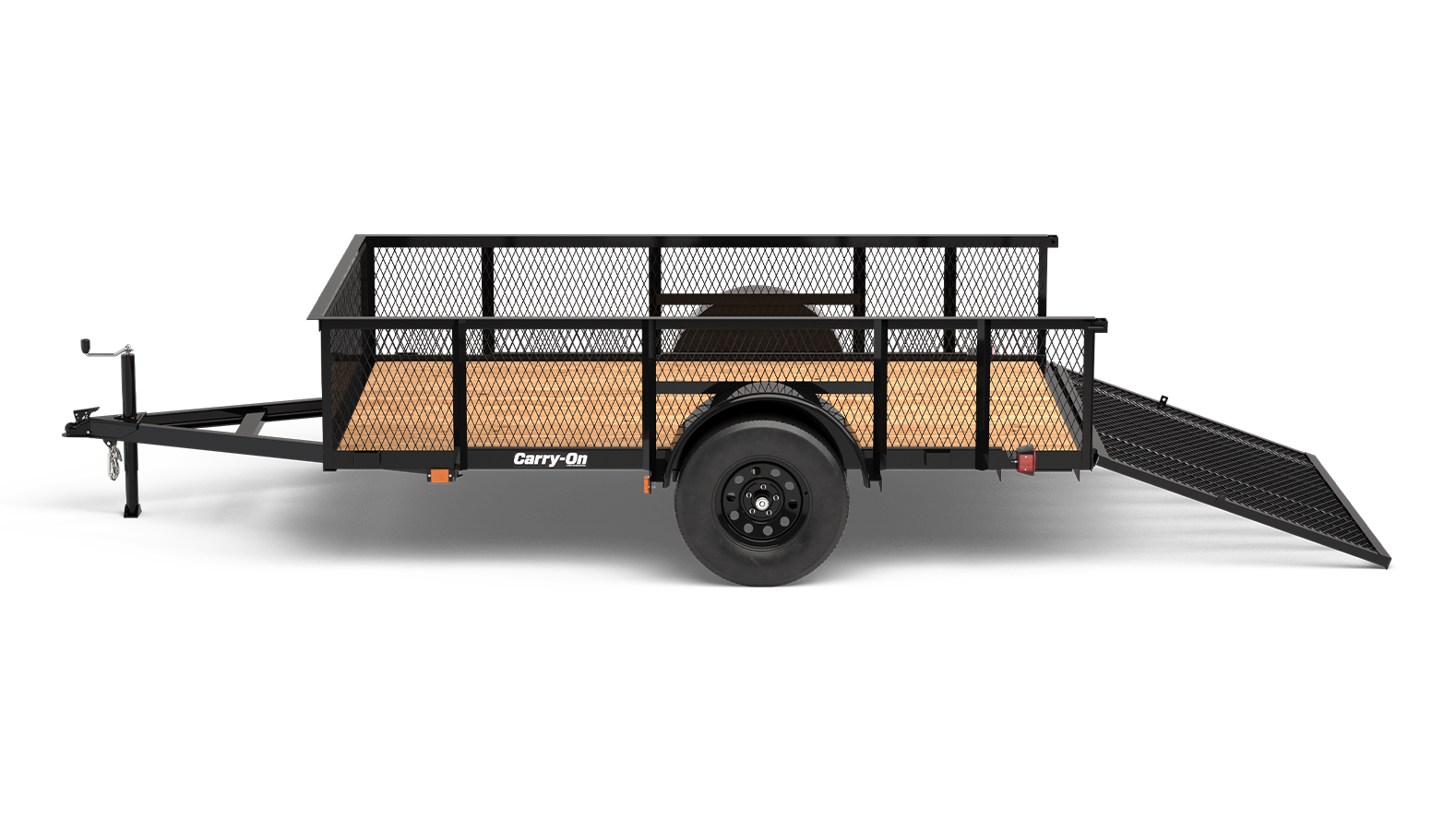

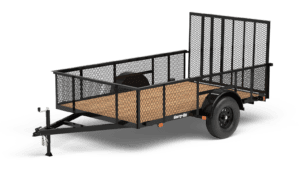

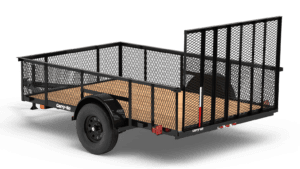

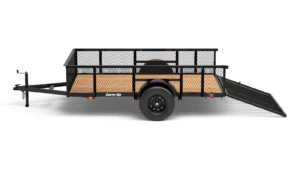

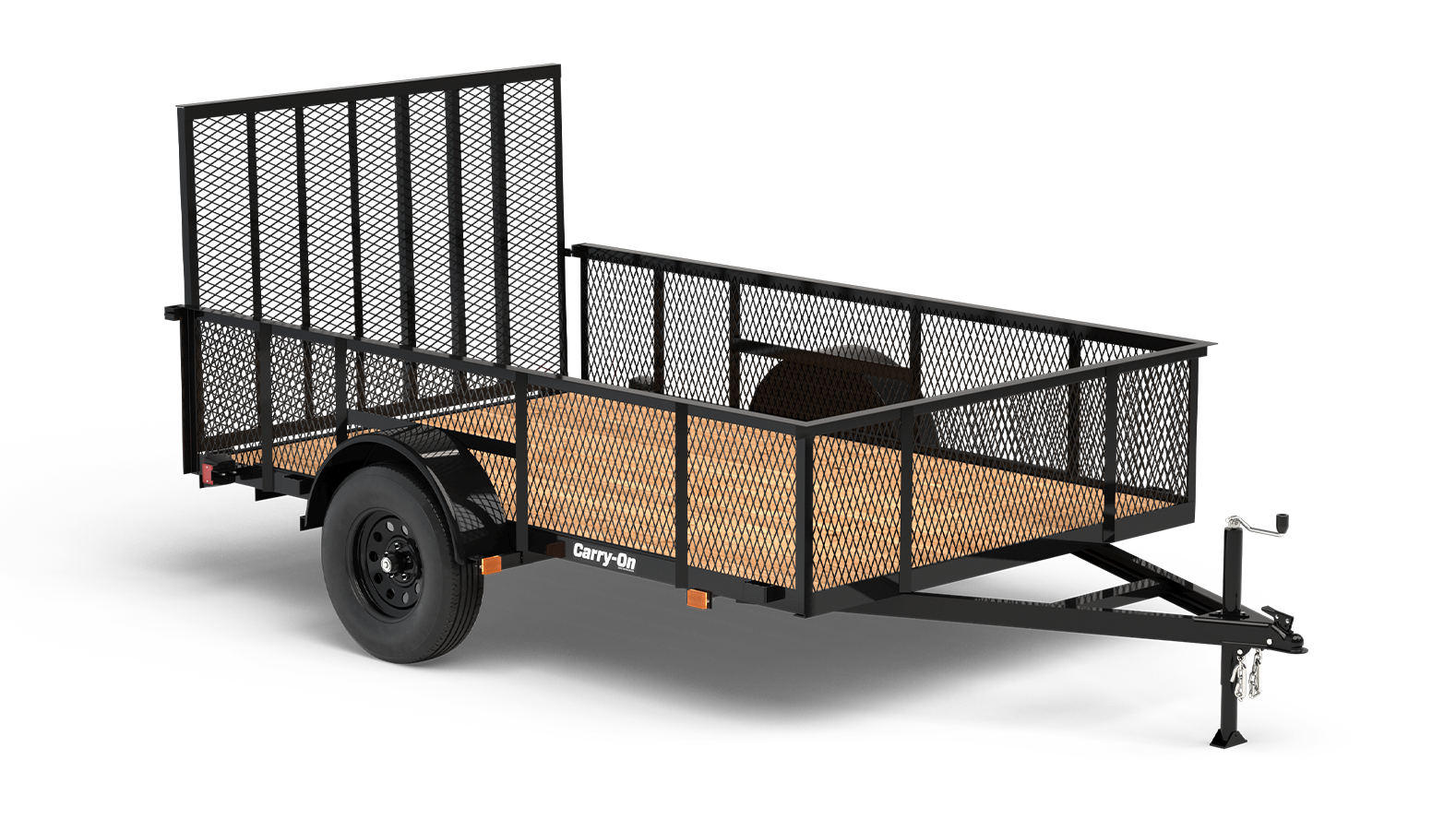

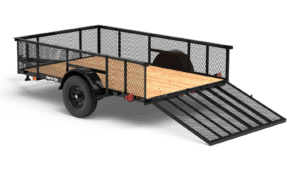

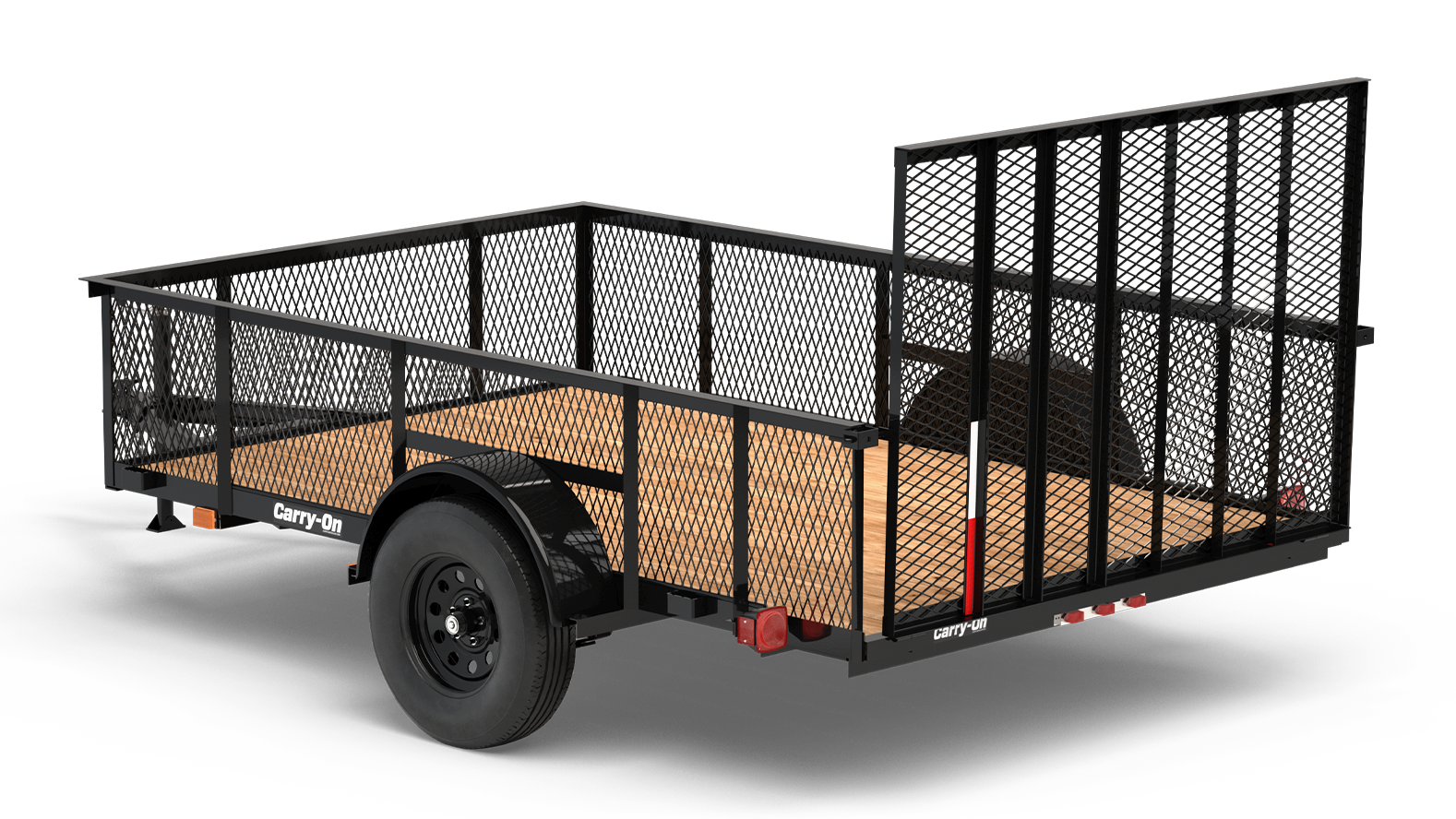

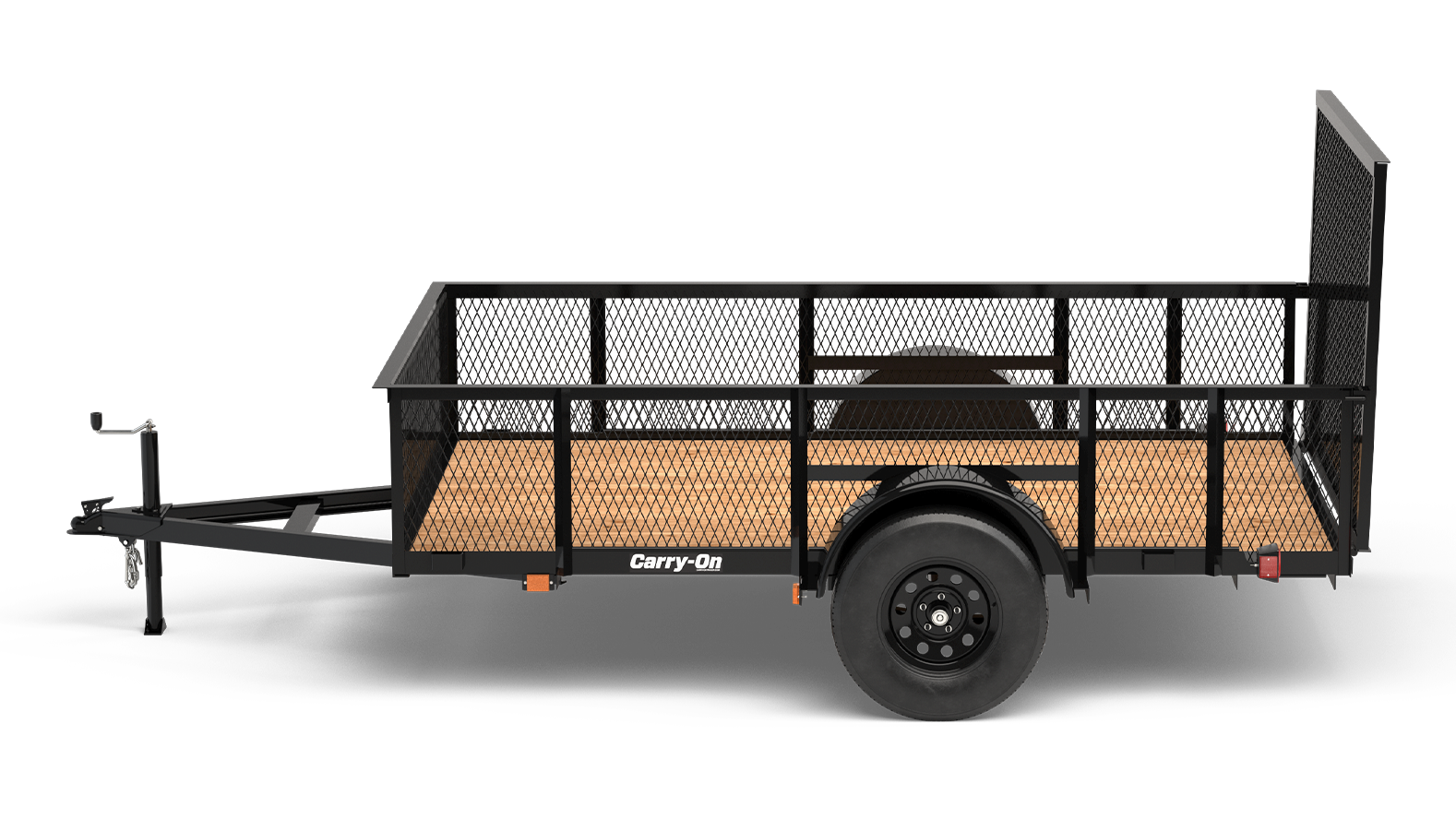

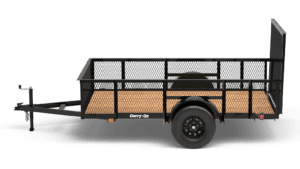

6' x 10' GWHS Series

Model Number:

6x10gwhs

Arrow/ white
View Specs

Model Information:

  • Overall W x L: 94-1/2" x 168"
  • Deck W x L: 76" x 120"
  • Gate W x L: 72" x 49"
  • Empty Weight: 875 lbs.
  • Payload Capacity: 2,115 lbs.
  • Flooring Material: 2x Treated Wood
  • Coupler: 2" A-Frame (200T)
  • Tongue Type: A-Frame 3" Steel Channel
  • Length: Frame to Coupler: 48"
  • Level Tongue Height: ?
  • Safety Chains: Class II, 30" x 1/4" w/ Hooks (639T)
  • Jack: 2,000# Top-Wind (741)
  • Flooring Material: 2x Treated Wood
  • Deck Ht. from Ground: 18-3/4"
  • Frame: 2" x 3" x 3/16" Steel Angle
  • Uprights: 1-1/2" x 1-1/2" x 1/8" Steel Angle
  • Upright Height: 24" H
  • Sides: Steel Mesh
  • Top Rail: 2" x 2" x 1/8" Steel Angle
  • Cargo Hold: 4 Stake Pockets
  • Fenders: 9" x 32" Steel Round w/ Back (9320T)
  • Tires: 15" ST205/75D15 (205X15BLACK)
  • Wheels: Black Mod
  • Axle Type: 3,500# E-Z Lube 88/74.5 (3K8874EZ)
  • GVWR: 2,990 Lbs.
  • Leaf Springs: 3-Leaf Eye-to-Eye (504T)
  • U-Bolt: 1/2" Round (514T)
  • Tie Plate: Medium 4" x 5-1/2" (513T)
  • Hub Kit: 5 Lugs on 4-1/2" Pattern, 1,750 Lbs. (545T)
  • Dust Cap: EZ Lube (851T)
  • Spindle: 1-3/8", Max 1,750 Lbs. Capacity (350T)
  • Bearing: 1-3/8" Inner, 1-1/16" Outer Bearing Kit (502T)
  • Grease Seal: 1.719" (496T)
  • Gate Style: Fixed Ramp Gate
  • Rear Latch: Spring Latch (847T)
  • Plug Type: 4-Way Flat
  • Tail Lights: 80"+ Road Side (815T), 80"+ Curb Side (816T)
  • License Plate Illumination: Incorporated with Road Side Tail Light
  • Marker Lights: Amber, Surface Mount (817-2T)
  • Clearance Lights: Amber, Surface Mount (817-2T)
  • ID Lights: Red 3-Light ID Bar (838T)
