Models / 7K Tandem Axle Utility Trailer

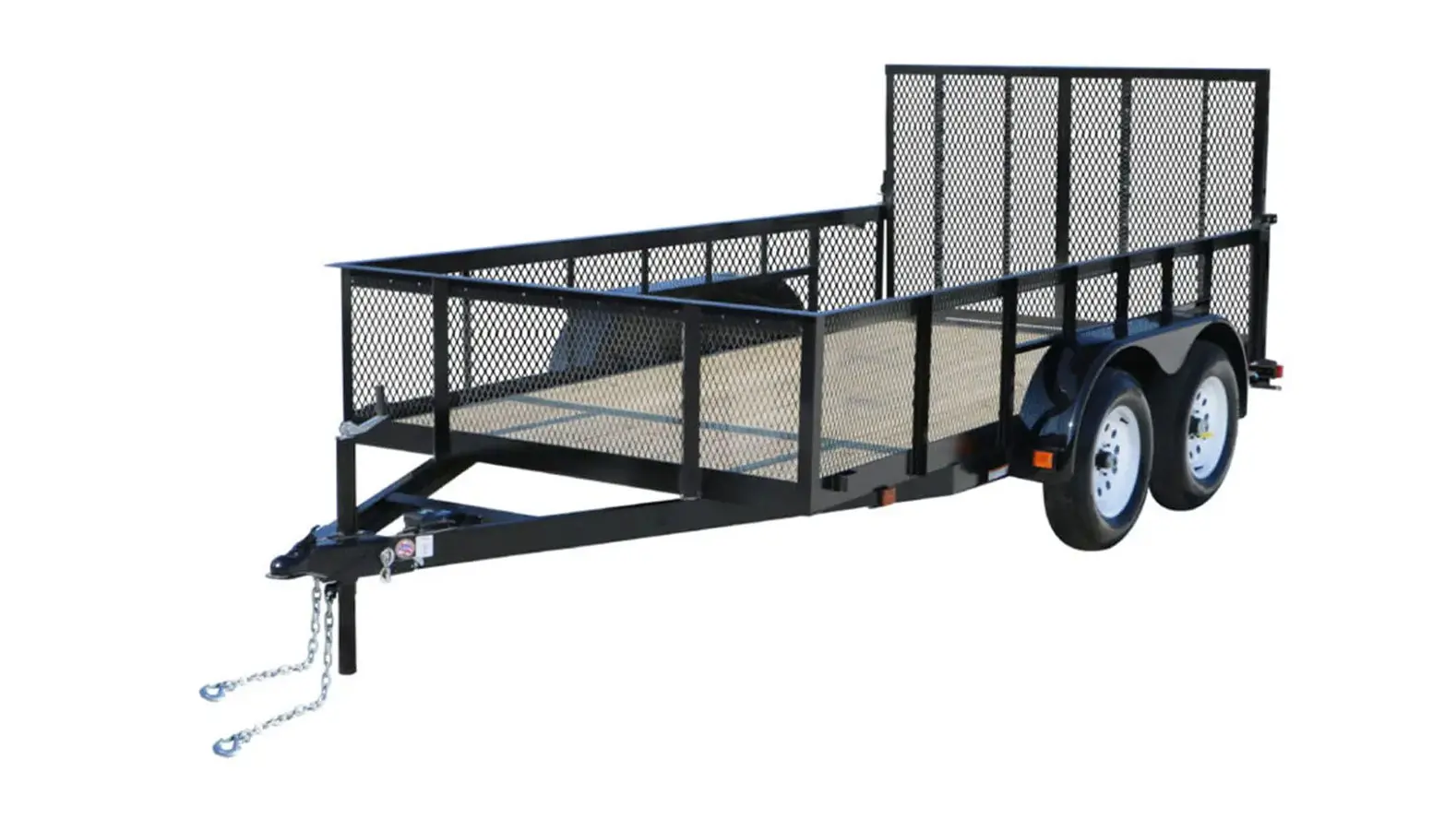

6' x 12' 7K Tandem Axle Utility Trailer

Model Number:

6x12gwhs2brk

Arrow/ white
View Specs

Model Information:

  • Overall W x L: 96" x 194"
  • Bed W x L: 76" x 144"
  • Gate W x H: 72" x 49"
  • Empty Weight: 1,450 lbs.
  • Payload Capacity: 5,550 lbs.
  • Floor: Wood, Treated 2x8
  • GVWR: 7,000 lbs.
  • Volume Capacity: N/A yd.

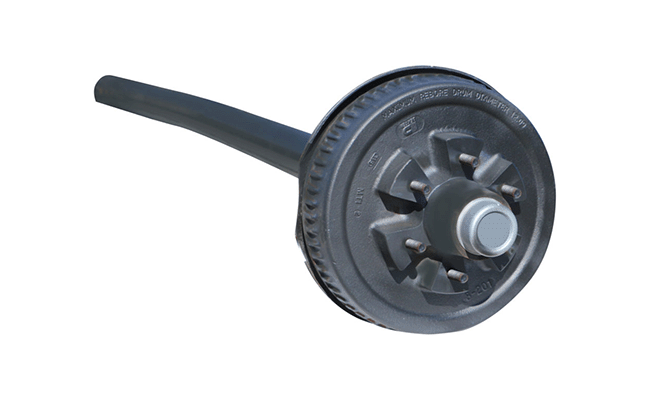

  • Axle 1: 3,500 lb. Brake Axle
  • Axle 2: 3,500 lb. Brake Axle
  • Breakaway Kit Included: Yes
  • Leaf Springs: 3
  • Floor: 3" x 2" Angle
  • Frame On Center: 2" x 2" Angle
  • Uprights: 24"
  • Upright Height: 2" x 2" Angle
  • Roof Frame On Center: 4" Channel A-Frame
  • Tongue Extension: 2-5/16" A-Frame
  • Coupler: 2,000 lb. Rated Top Wind
  • Jack: 15" ST205x15
  • Tires: White Mod
  • Wheels: Steel with Back
  • Fender Wells, Inner: ?
  • Lights: ?
  • Front Vertical Stone Guard: ?
  • Deck Height: Spring Assist Fold-Up and Fold-In (?)
  • Rear Gate Style: ?

Parts
