Overall W x L:
101" x 198"
-
Deck W x L:
82" x 144"
-
Gate W x L:
79" x 49"
-
Empty Weight:
950 lbs.
-
Payload Capacity:
2,040 lbs.
-

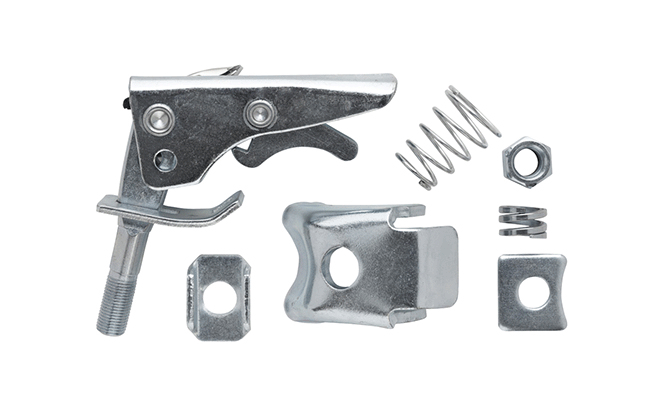

Coupler:
2" A-Frame (200T)
-
Tongue Type:
A-Frame 3" Steel Channel
-
Length: Frame to Coupler:
49"
-
Level Tongue Height:
16-1/4"
-
Safety Chains:
Class II, 30" x 1/4" w/ Hooks (639T)
-
Jack:
2,000 Lbs. Top-Wind (741)
-
Flooring Material:
2x Treated Wood
-
Deck Height from Ground:
18-3/4"
-
Frame:
2" x 3" x 3/16" Steel Angle
-
Uprights:
2" x 2" Steel Angle
-
Upright Height:
14"
-
Sides:
Steel Mesh, 16" W x 65" L Removable Ramps
-
Top Rail:
2" x 2" x 1/8" Steel Angle
-
Cargo Hold:
4 Stake Pockets
-
Fenders:
9" x 32" Steel Round w/ Back (9320T)
-
Tires:
15" ST205/75D15 (205X15BLACK)
-
Wheels:
Black Mod
-

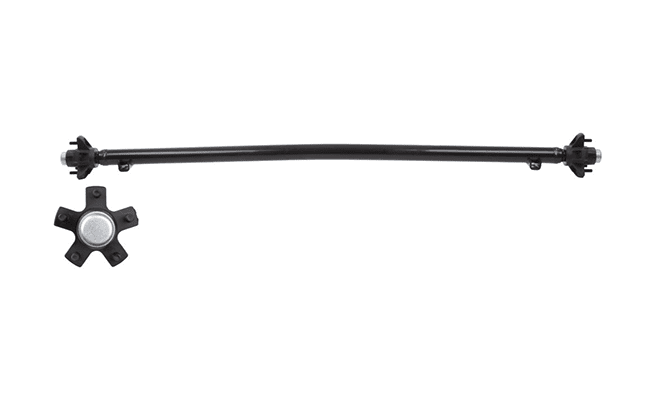

Axle Type:
Single 3,500 Lbs. E-Z Lube, 93"/80" (3K9380EZ)
-
GVWR:
2,990 Lbs.
-
Leaf Springs:
3-Leaf Eye-to-Eye (504T)
-
U-Bolt:
1/2" Round (514T)
-

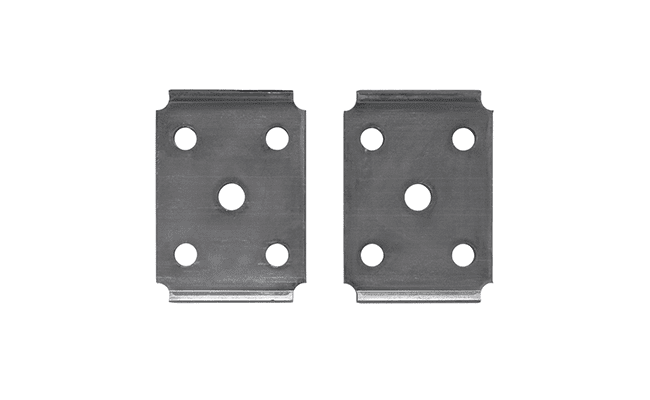

Tie Plate:
Medium 4" x 5-1/2" (513T)
-
Hub Kit:
5 Lugs on 4-1/2" Pattern, 1,750 Lbs. (545T)
-
Dust Cap:
E-Z Lube (851T)
-
Spindle:
1-3/8", Max 1,750 Lbs. Capacity (350T)
-
Bearing:
1-3/8" Inner, 1-1/16" Outer Bearing Kit (502T)
-
Grease Seal:
1.719" (496T)
-
Gate Style:
Fixed Ramp Gate
-
Rear Latch:
Spring Latch (847T)
-
Plug Type:
4-Way Flat
-
Tail Lights:
80"+ Roadside (815T), 80"+ Curbside (816T)
-
License Plate Illumination:
Incorporated with Roadside Tail Light
-
Marker Lights:
LED Amber Penny Light (881T)
-
Clearance Lights:
LED Amber Penny Light (881T)
-
ID Lights:
Red 3-Light ID Bar (838T)
