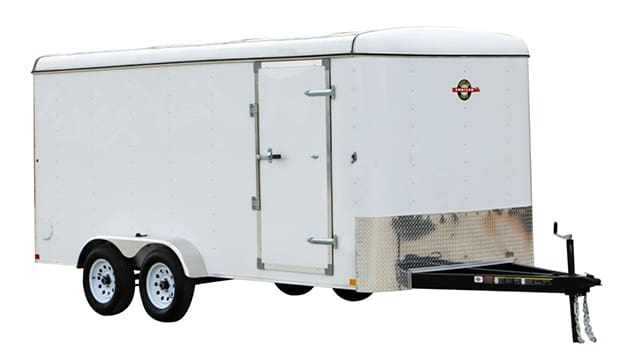

7' x 16' 7K Radius Front Rounded Roof Tandem Axle

Model Number:

7x16cg

Arrow/ white
View Specs

Model Information:

  • Overall W x L: 102" x 246"
  • Bed W x L: N/A x N/A
  • Gate W x H: ?" x ?"
  • Empty Weight: 2,490 lbs.
  • Payload Capacity: 4,510 lbs.
  • GVWR: 7,000 lbs.
  • Volume Capacity: N/A yd.
  • Axle 1: 3,500 lb. E-Z Lube Drop Axle w/ Brake
  • Axle 2: 3,500 lb. E-Z Lube Drop Axle w/ Brake
  • Breakaway Kit Included: Yes
  • Leaf Springs: 3
  • Floor: 3/4" Plywood
  • Frame: 2" x 6" Tube
  • Frame On Center: 24"
  • Wall Frame On Center: 24"
  • Interior Walls: 3/8" Plywood
  • Roof Frame On Center: 24"
  • Tongue: 2" x 6" Tube A-Frame Triple Through
  • Coupler: 2-5/16" A-Frame
  • Jack: 2,000 lb. Rated Top Wind
  • Tires: 15" 205X15
  • Wheels: White Mod
  • Fenders: Aluminum, Smooth
  • Fender Wells, Inner: ?
  • Lights: LED
  • Overall Height: 106"
  • Interior Height: 78"
  • Interior Width: 78"
  • Interior Length: 190"
  • Side Wall Length: ?
  • Nose Length: ?
  • Front Horizontal Stone Guard: 24" H Diamond Plate with Trim
  • Deck Height: ?
  • Rear Gate Style: Double Door
  • Approach Angle: ?
  • Curbside Entry Door W x H: 36" x ?"
