Trailers / Equipment & Car Hauler

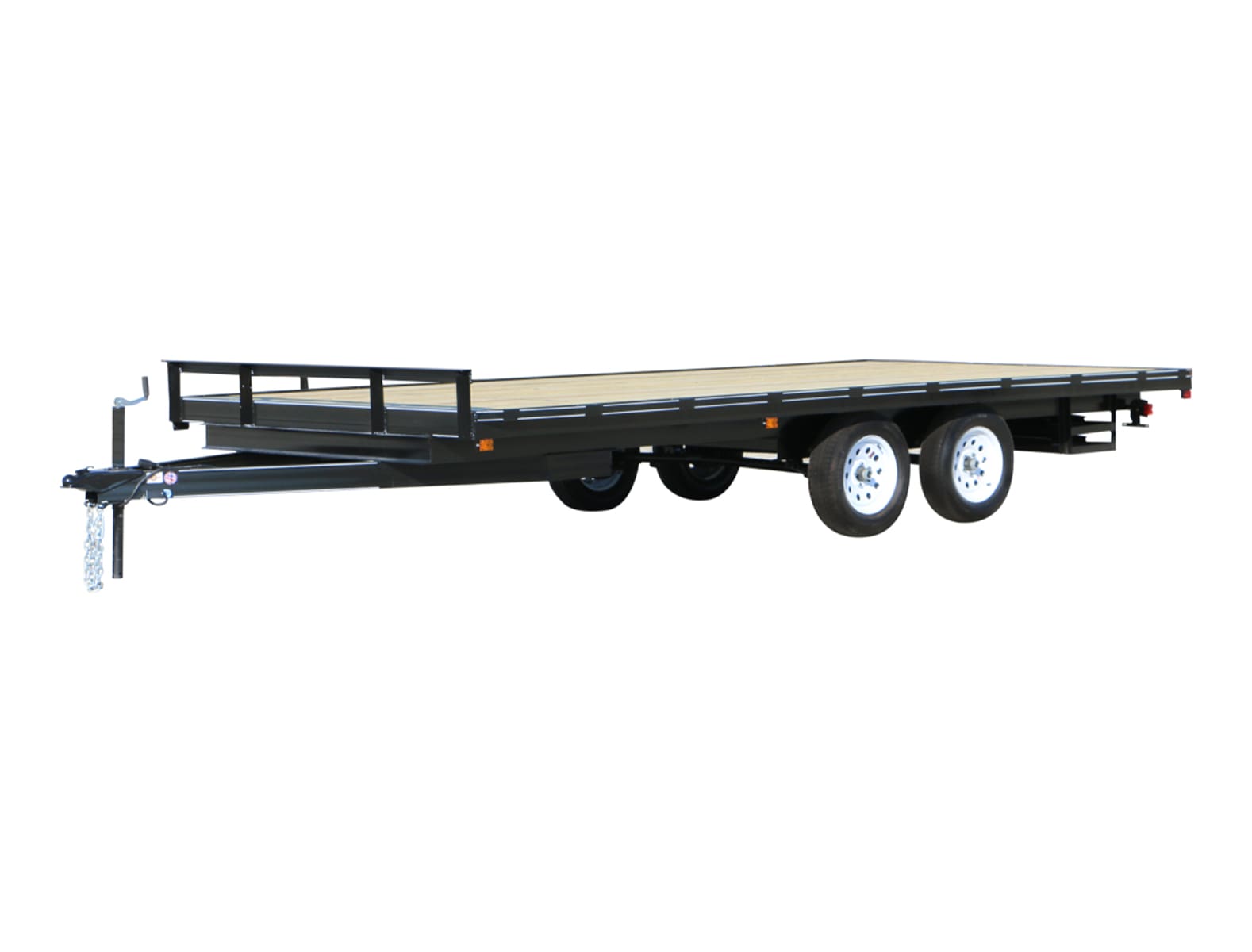

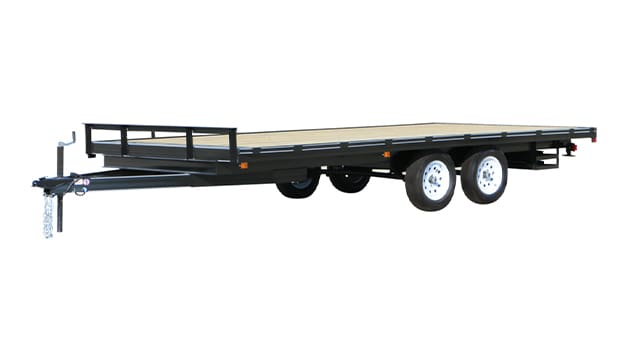

10K Deck-Over Tandem Axle Equipment Trailer

Need to get more done? You came to the right trailer. The wide, flat deck of this equipment trailer sits on top of the wheels, giving you more ground clearance and more space to operate when loading up all your gear. With a heavy-duty build and tandem axles to haul larger loads, it can handle any loan you need to haul.

Available Sizes

  • 8.5' x 18'
  • 8.5' x 20'
Arrow/ white
View Models
  • GVWRGroup Copy 2?: 9,990 lbs.
  • Empty Weight: 2,980 - 3,020 lbs.
  • Payload CapacityGroup Copy 2?: 6,970 - 7,010 lbs.
  • Leaf Springs: 5
  • Frame: 6" Channel
  • Uprights: Front Stop Rail 2.5" x 2.5" Angle
  • Top Rail: Front Stop Rail 2.5" x 2.5" Angle
  • Tongue: 6" Channel A-Frame
  • Coupler: 2-5/16" A-Frame
  • Jack: 5,000 lb. Rated Square Drop Leg
  • Tires: 15" ST225x15
  • Wheels: White Mod
Capacity and construction varies by model. See individual model information pages for complete details.

Models

  • Model: 8.5X18DO10K
  • Overall W x L: 102" x 265"
  • Bed W x L: 97" x 216"
  • Gate W x H: 16" x 72"
  • Empty Weight: 2,980 lbs.
  • Payload Capacity: 7,010 lbs.
  • Floor: Wood, Treated 2x8
  • Model: 8.5X20DO10K
  • Overall W x L: 102" x 289"
  • Bed W x L: 97" x 240"
  • Gate W x H: 16" x 72"
  • Empty Weight: 3,020 lbs.
  • Payload Capacity: 6,970 lbs.
  • Floor: Wood, Treated 2x8

Find your trailer in
a store near you

Arrow/ white
Find a Dealer

Features

DECK-OVER DESIGN

Built to sit above the wheels, our deck-over trailers feature a higher and wider platform—delivering increased ground clearance and added width for bigger cargo.

HEAVY DUTY

Strong and durable enough for whatever you need to carry—from worksite machinery and equipment to construction materials—our trailers and components are all constructed from quality OEM materials and fabricated by highly skilled teams. The result? A robust trailer built to meet your every demand.

CHANNEL FRAME & TONGUE

Lightweight yet strong, a channel frame and tongue can increase carry capacity. Plus, channel can be completely coated which further decreases the opportunity for corrosion.
