Trailers / Equipment & Car Hauler

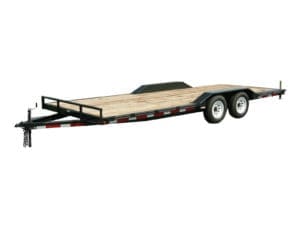

10K Tandem Axle Car Hauler

When looking at our car haulers, this unit is as heavy-duty as they come. It's specially designed to fit a wide array of vehicles, from cars to trucks to large tractors. And its rear stabilizer jacks help keep things steady as you're loading and unloading. It's time to hit the road.

Available Sizes

  • 8.5' x 18'
  • 8.5' x 20'
Arrow/ white
View Models
  • GVWRGroup Copy 2?: 9,990 lbs.
  • Empty Weight: 2,460 - 2,600 lbs.
  • Payload CapacityGroup Copy 2?: 7,530 - 7,390 lbs.
  • Leaf Springs: 5
  • Frame: 5" Channel
  • Uprights: Front Stop Rail 2" x 2" Tube
  • Uprights Height: 12"
  • Top Rail: Front Stop Rail 3" x 2" Angle
  • Tongue: 5" Channel A-Frame
  • Tongue Extension: (?)
  • Coupler: 2-5/16" A-Frame
  • Jack: 5,000 lb. Rated Top Wind
  • Tires: 15" ST205x15
  • Wheels: White Mod
Capacity and construction varies by model. See individual model information pages for complete details.

Models

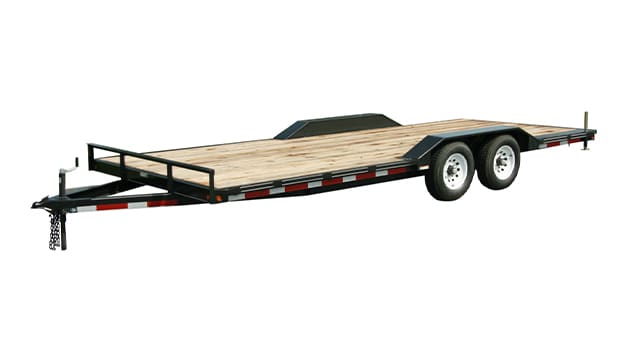

8.5' x 18' 10K Tandem Axle Car Hauler
  • Model: 8.5X18CHFTSR10K
  • Overall W x L: 102" x 262"
  • Bed W x L: 82" x 216"
  • Gate W x H: 16" x 60"
  • Empty Weight: 2,460 lbs.
  • Payload Capacity: 7,530 lbs.
  • Floor: Wood, Treated 2x8

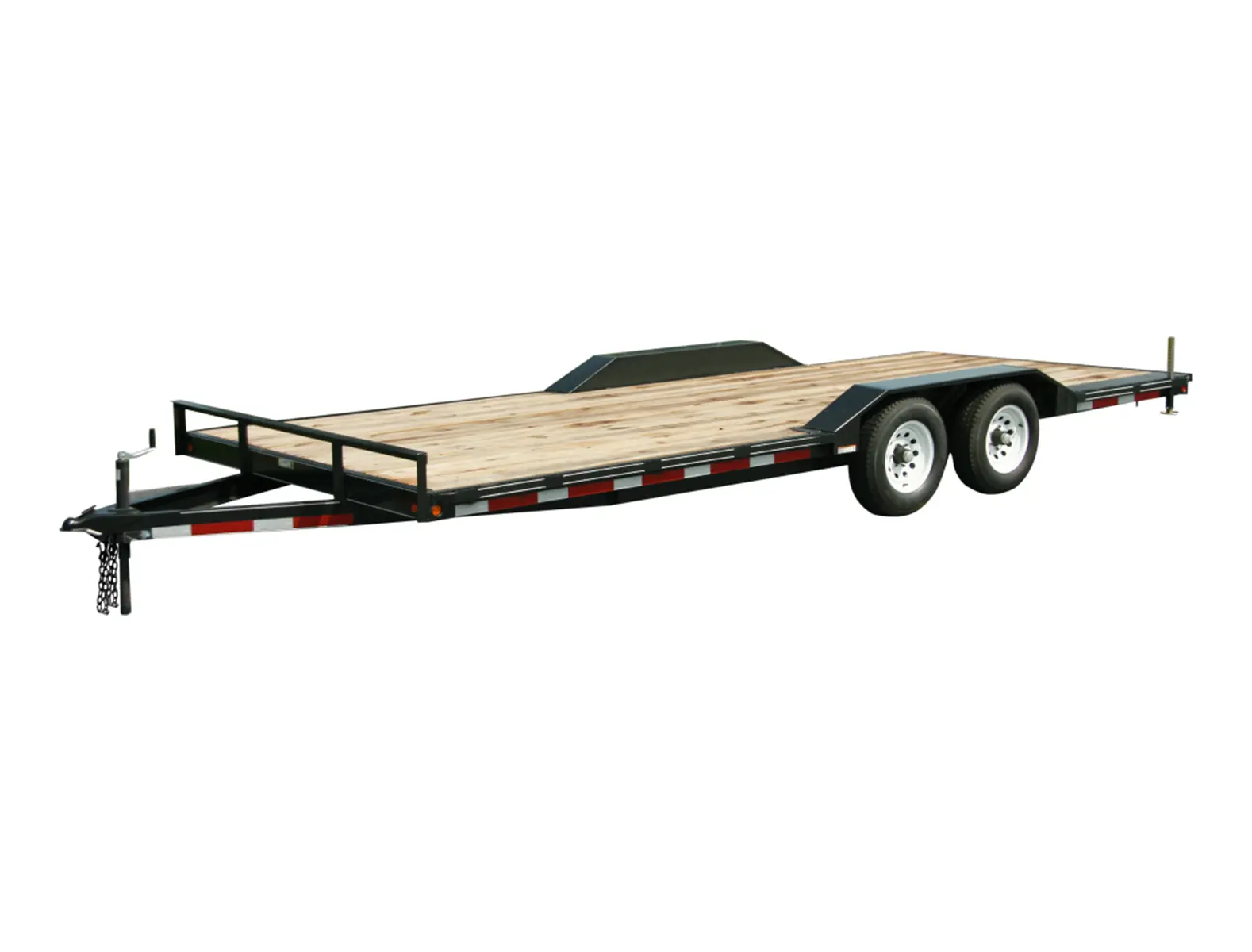

8.5' x 20' 10K Tandem Axle Car Hauler
  • Model: 8.5X20CHFTSR10K
  • Overall W x L: 102" x 286"
  • Bed W x L: 82" x 240"
  • Gate W x H: 16" x 60"
  • Empty Weight: 2,600 lbs.
  • Payload Capacity: 7,390 lbs.
  • Floor: Wood, Treated 2x8

Find your trailer in
a store near you

Arrow/ white
Find a Dealer

Features

8.5' W TRAILERS

Our 8.5 ft. wide trailers offer exceptional safety and performance alongside incredible versatility for cargo. It's our widest trailer design, and it's the best way for you to get more out of your work, play or travel—or all of the above.

CHANNEL A-FRAME TONGUE

Mitered at the point where the A-frame intersects with the trailer's frame, a channel A-frame tongue bends to follow the frame back to the suspension—stiffening the chassis and lengthening the life of both the trailer and tongue. Plus, channel can be completely coated which further decreases the opportunity for corrosion.

SLIDE-IN RAMPS

Tired of removing your ramps and carrying them to your trailer's rear? With slide-in ramps, loading and unloading has never been more convenient. Simply open a latch, slide the ramps out, and place them on the support bar—that's it, you're done. Plus, when slide-ramps are not in use and out of the way, you can store longer cargo on your trailer.
