Trailers / Enclosed Cargo

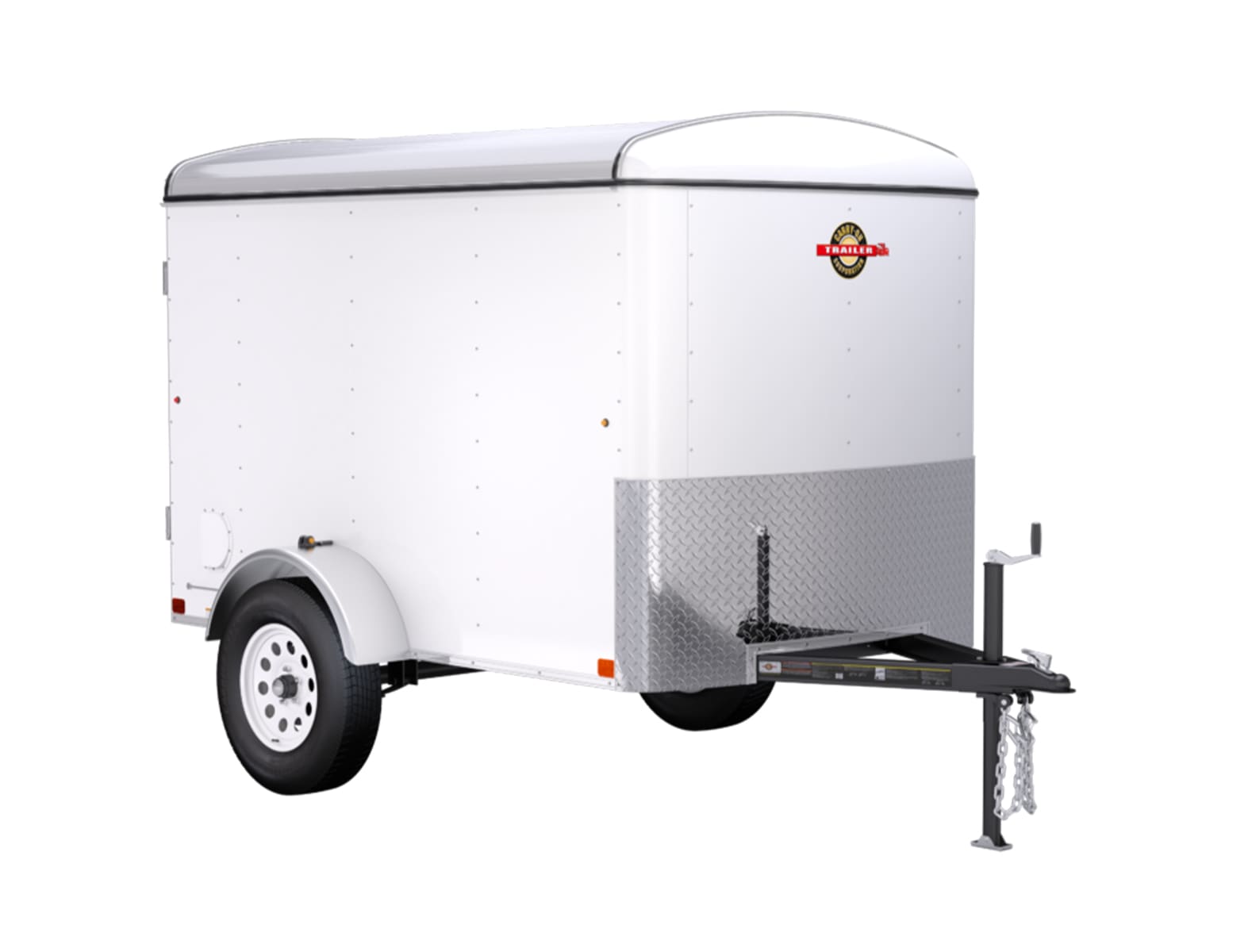

3K Radius Front Rounded Roof

With this enclosed trailer, your cargo will stay safe and secure from thieves and prying eyes, because your gear is your business. No one else's. Its rounded roof design is perfect for shedding snow and ice, keeping your gear dry in transit or while you're storing it. Choose between rear door and ramp options, but either way, this trailer makes it as easy as possible to load and unload.

Available Sizes

  • 5' x 8'
  • 5' x 10'
  • GVWRGroup Copy 2?: 2,990 lbs.
  • Empty Weight: 890 - 930 lbs.
  • Payload CapacityGroup Copy 2?: 2,100 - 2,060 lbs.
  • Leaf Springs: 3
  • Frame: 2" x 3" Tube
  • Interior Walls: 3/8" Plywood
  • Tongue: 2" x 3" Tube A-Frame Through
  • Coupler: 2" A-Frame
  • Jack: 2,000 lb. Rated Top Wind
  • Tires: 15" 205X15
  • Wheels: White Mod
Capacity and construction varies by model. See individual model information pages for complete details.

Models

5' x 8' 3K Radius Front Rounded Roof
  • Model: 5X8CGR
  • Overall W x L: 79" x 144"
  • Gate W x H: ?" x ?"
  • Empty Weight: 890 lbs.
  • Payload Capacity: 2,100 lbs.
  • Floor: 3/4" Plywood
5' x 10' 3K Radius Front Rounded Roof
  • Model: 5X10CGR
  • Overall W x L: 79" x 168"
  • Gate W x H: ?" x ?"
  • Empty Weight: 930 lbs.
  • Payload Capacity: 2,060 lbs.
  • Floor: 3/4" Plywood
5' x 8' 3K Radius Front Rounded Roof
  • Model: 5X8CG
  • Overall W x L: 79" x 144"
  • Gate W x H: ?" x ?"
  • Empty Weight: 890 lbs.
  • Payload Capacity: 2,100 lbs.
  • Floor: 3/4" Plywood
5' x 10' 3K Radius Front Rounded Roof
  • Model: 5X10CG
  • Overall W x L: 79" x 168"
  • Gate W x H: ?" x ?"
  • Empty Weight: 930 lbs.
  • Payload Capacity: 2,060 lbs.
  • Floor: 3/4" Plywood

Find your trailer in
a store near you

Arrow/ white
Find a Dealer

Features

ROUNDED ROOF

For enclosed trailers, a rounded roof is less susceptible to leaking and provides an extra level of protection against the elements. And when winter rolls around, snow and ice have a difficult time sticking on a rounded roof which helps shed unnecessary extra weight.

PROTECTED FROM THE ELEMENTS

Is your cargo vulnerable to damage from the elements? Then we have you covered—literally. Our enclosed trailers are ideal for protecting equipment and cargo from the weather. These trailers are the ideal way to make sure cargo that can't risk damage is safe and secure.

ADDED SECURITY

Sometimes after a long day, all you want to do is go home. With an enclosed trailer, now you can. Lock it up, leave it behind at the jobsite, and get home quicker. Your cargo is protected and ready to go the moment you return.
