Trailers / Dump Trailer

5K Low Profile Dump Trailer

Built for dirt, mulch, and other light-duty loads, this trailer features a low profile for easier loading and unloading. With a low center of gravity and a single brake axle, it's easy to control and designed for safer transporting.

Available Sizes

  • 5' x 8'
  • 5' x 10'
Arrow/ white
View Models
  • GVWRGroup Copy 2?: 5,000 lbs.
  • Empty Weight: 1,375 - 1,490 lbs.
  • Payload CapacityGroup Copy 2?: 3,510 - 3,625 lbs.
  • Volume Capacity: 2.3 - 2.8 yd.
  • Leaf Springs: 5
  • Frame: 4" Channel
  • Top Rail: Integrated
  • Sides: 18" H, 14 Ga. Steel
  • Tongue: 4" Channel
  • Coupler: 2-5/16" A-Frame
  • Jack: 5,000 lb. Rated Top Wind
  • Tires: 15" ST225X15
  • Wheels: White Mod
Capacity and construction varies by model. See individual model information pages for complete details.

Models

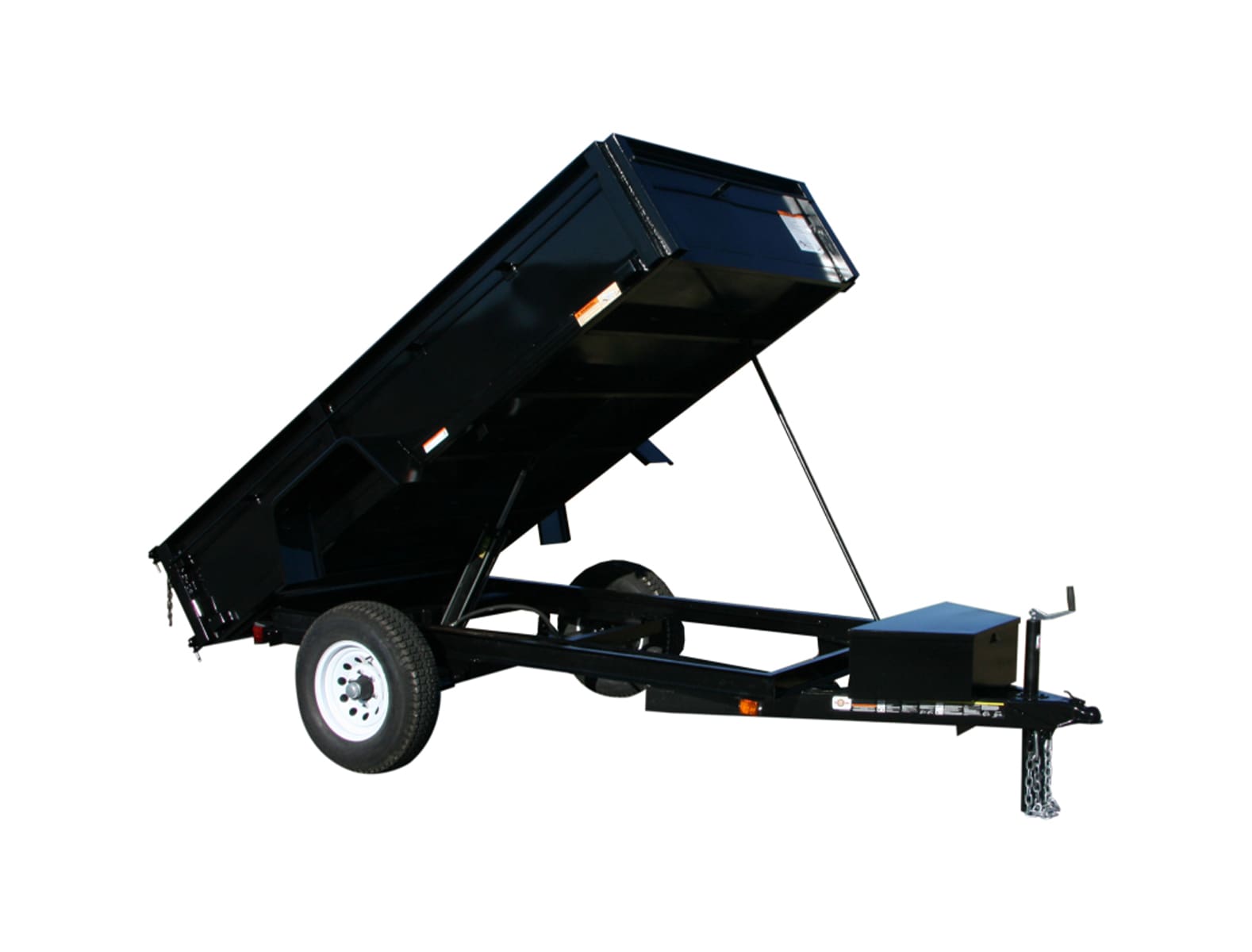

  • Model: 5X8DUMPLP5K
  • Overall W x L: 79" x 143"
  • Bed W x L: 60" x 96"
  • Gate W x H: 61" x 20"
  • Empty Weight: 1,375 lbs.
  • Payload Capacity: 3,625 lbs.
  • Floor: Steel, 12 Ga.

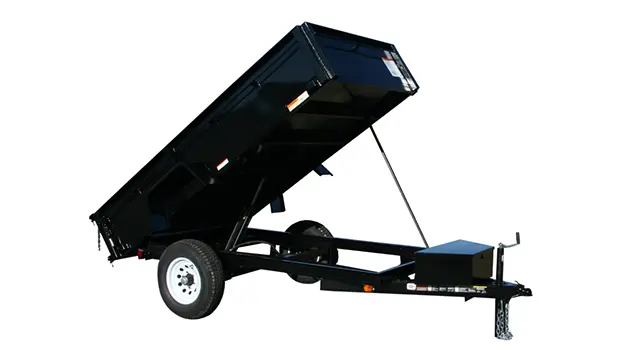

  • Model: 5X10DUMPLP5K
  • Overall W x L: 79" x 167"
  • Bed W x L: 60" x 120"
  • Gate W x H: 61" x 20"
  • Empty Weight: 1,490 lbs.
  • Payload Capacity: 3,510 lbs.
  • Floor: Steel, 12 Ga.

Find your trailer in
a store near you

Arrow/ white
Find a Dealer

Features

LOW PROFILE DESIGN

Stop breaking your back. Our dump trailers feature a low-profile design with a deck height closer to the ground. This makes unloading and loading easier on your body, keeping you on the job or doing what you love for longer.

COMBINATION SPREADER AND TAILGATE

Easily spread gravel, stones, and other bulk materials with a spreader gate, giving you an additional option for dumping materials from a dump trailer. Simply open the spreader to the desired gap, tilt your bed, and evenly dumping materials from the trailer. For extra versatility, the rear can also be used in a traditional tailgate configuration.

PUMP W/ 20' REMOTE

Emptying your dump trailer has never been easier. Allowing you to operate from a distance to better see what's being dumped, our 12v hydraulic pump with 20' remote delivers more than enough power to completely lift or lower your dump trailer in minutes.
