Trailers / Utility

GWRSL3K Series

This trailer is a versatile solution for hauling all kinds of gear, cargo, or equipment. The rugged design is easy to maintain and will stand up to frequent use, whether you're working hard or playing hard. And to keep your loads secure for the long haul, this trailer is also available with high mesh sides to keep it all together.

Available Sizes

  • 5' x 8'
  • 5' x 10'
  • 5' x 12'
  • 5' x 14'
  • 5.5' x 10'
  • 6' x 10'
  • 6' x 12'
  • 6' x 14'
  • 7' x 14'
  • GVWRGroup Copy 2?: 2,990 lbs.
  • Empty Weight: 650 - 1,020 lbs.
  • Payload CapacityGroup Copy 2?: 1,970 - 2,340 lbs.
  • Coupler: 2" A-Frame (200T)
  • Tongue Type: A-Frame 3" Steel Channel
  • Level Tongue Height: 16-1/2"
  • Safety Chains: Class II, 30" x 1/4" w/ Hooks (639T)
  • Jack: 2,000# Top-Wind (741)
  • Flooring Material: 2x Treated Wood
  • Frame: 2" x 3" x 3/16" Steel Angle
  • Uprights Height: 14"
  • Cargo Hold: 4 Stake Pockets
  • Fenders: 9" x 32" Steel Round w/ Back (9320T)
  • Tires: 15" ST205/75D15 (205X15BLACK)
  • Wheels: Black Mod
  • GVWR: 2,990 Lbs.
  • Leaf Springs: 3-Leaf Eye-to-Eye (504T)
  • U-Bolt: 1/2" Round (514T)
  • Tie Plate: Medium 4" x 5-1/2" (513T)
  • Hub Kit: 5 Lugs on 4-1/2" Pattern, 1,750 Lbs. (545T)
  • Dust Cap: EZ Lube (851T)
  • Spindle: 1-3/8", Max 1,750 Lbs. Capacity (350T)
  • Bearing: 1-3/8" Inner, 1-1/16" Outer Bearing Kit (502T)
  • Grease Seal: 1.719" (496T)
  • Gate Style: Fixed Ramp Gate
  • Rear Latch: Spring Latch (847T)
  • Plug Type: 4-Way Flat
  • License Plate Illumination: Incorporated with Road Side Tail Light
Capacity and construction varies by model. See individual model information pages for complete details.

Models

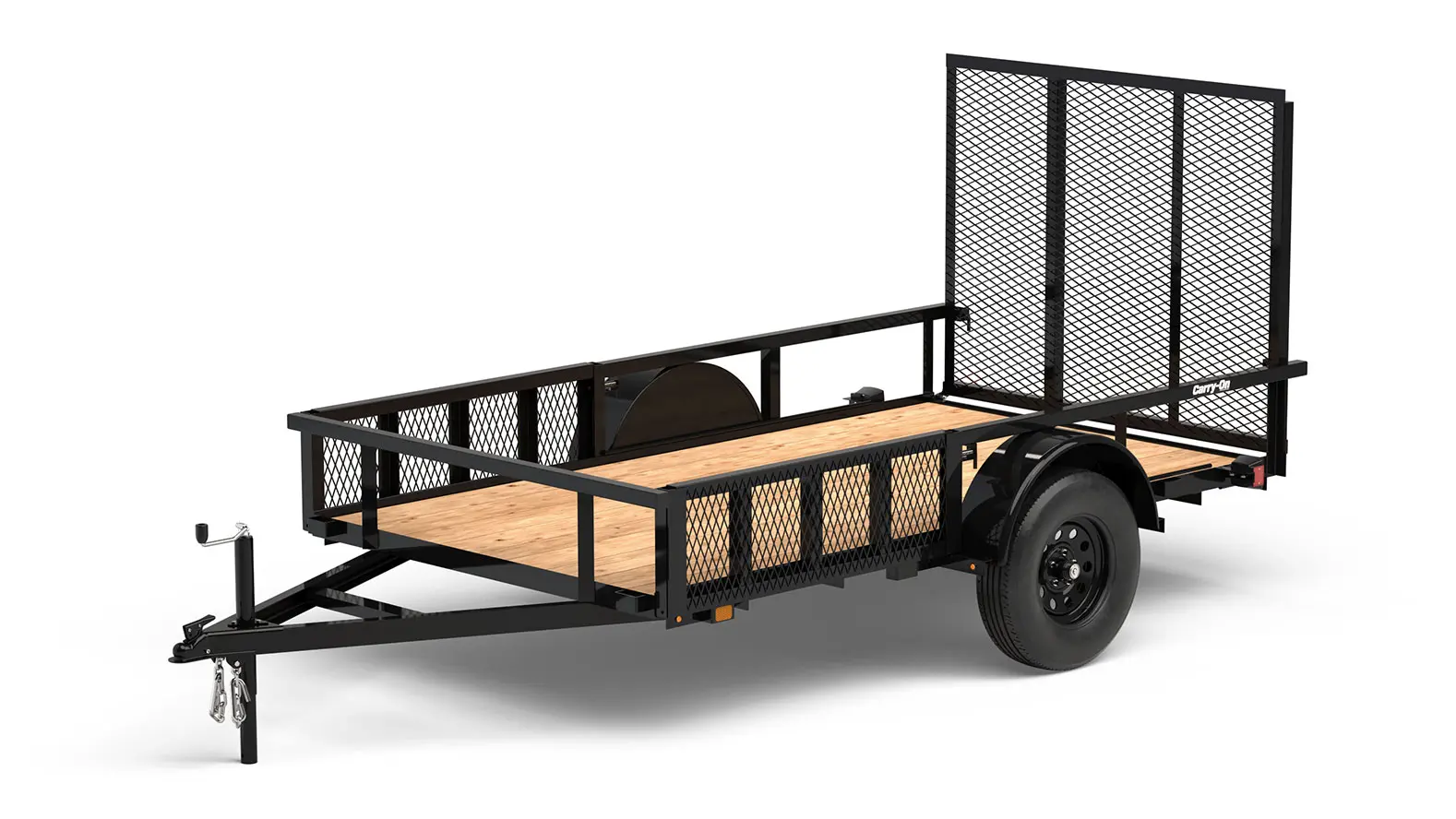

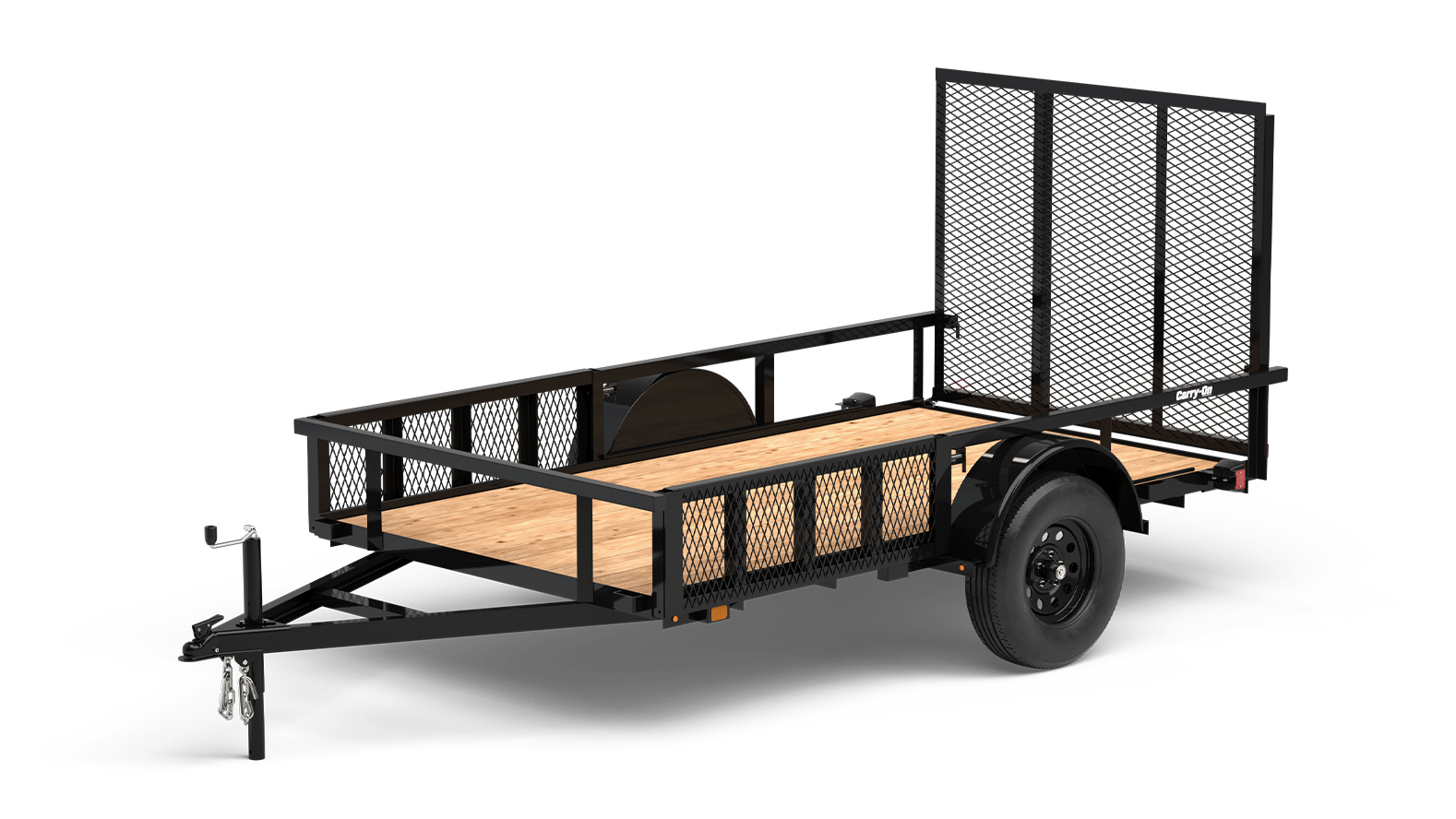

5.5' x 10' GWRSL3K Series
  • Model: 5.5x10GWRSL3K
  • Overall W x L: 84-1/2" x 173"
  • Deck W x L: 66" x 120"
  • Gate W x L: 64" x 49"
  • Empty Weight: 740 lbs.
  • Payload Capacity: 2,250 lbs.
  • Flooring Material: 2x Treated Wood
6' x 12' GWRSL3K Series
  • Model: 6x12GWRSL3K
  • Overall W x L: 94-1/2" x 206"
  • Deck W x L: 76" x 144"
  • Gate W x L: 72.75" x 49"
  • Empty Weight: 910 lbs.
  • Payload Capacity: 2080 lbs.
  • Flooring Material: 2x Treated Wood
6' x 14' GWRSL3K Series
  • Model: 6x14GWRSL3K
  • Overall W x L: 94-1/2" x 230"
  • Deck W x L: 76" x 168"
  • Gate W x L: 72.75" x 49"
  • Empty Weight: 1020 lbs.
  • Payload Capacity: 1970 lbs.
  • Flooring Material: 2x Treated Wood
7' x 14' GWRSL3K Series
  • Model: 7x14GWRSL3K
  • Overall W x L: 100-1/2" x 227"
  • Deck W x L: 82" x 168"
  • Gate W x L: 78-3/4" x 49"
  • Empty Weight: 999 lbs.
  • Payload Capacity: 1991 lbs.
  • Flooring Material: 2x Treated Wood

Find your trailer in
a store near you

Arrow/ white
Find a Dealer

Features

VERSATILITY

Expand what you can haul with a utility trailer. Dropping off old furniture? Easy. Camping with friends? Of course. Moving bulk material from worksite to worksite? No problem. From point A to B, our utility trailers offer the versatility you need to haul belongings from one place to another without hassle.

EASY ACCESS

We're committed to creating utility trailers that are easy to use and safer to unload and load—no matter what you're hauling. Ready for anything, their open design gives you the opportunity to haul cargo of any shape and strap it down using its many, accessible tie-down points.

EASY TO MANEUVER

Built to handle smaller loads of cargo, our lightweight and maneuverable single-axle trailers are perfect for a wide range of hauling jobs that demand agility.
