Trailers / Enclosed Cargo

7K Radius Front Rounded Roof Tandem Axle

When it comes to mobile storage, protecting your cargo from the elements in transit, and handling heavier loads, this trailer's got it covered. Its rounded roof design effectively shields your gear from snow, ice and rain, and its tandem axle and heavy-duty frame help it haul more.

Available Sizes

  • 6' x 12'
  • 7' x 14'
  • 7' x 16'
Arrow/ white
View Models
  • GVWRGroup Copy 2?: 7,000 lbs.
  • Empty Weight: 2,200 - 2,490 lbs.
  • Payload CapacityGroup Copy 2?: 4,800 - 4,510 lbs.
  • Leaf Springs: 3
  • Frame: 2" x 4" Tube - 2" x 6" Tube
  • Interior Walls: 3/8" Plywood
  • Tongue: 2" x 4" Tube A-Frame Through, 2" x 6" Tube A-Frame Triple Through
  • Coupler: 2-5/16" A-Frame
  • Jack: 2,000 lb. Rated Top Wind
  • Tires: 15" 205X15
  • Wheels: White Mod
Capacity and construction varies by model. See individual model information pages for complete details.

Models

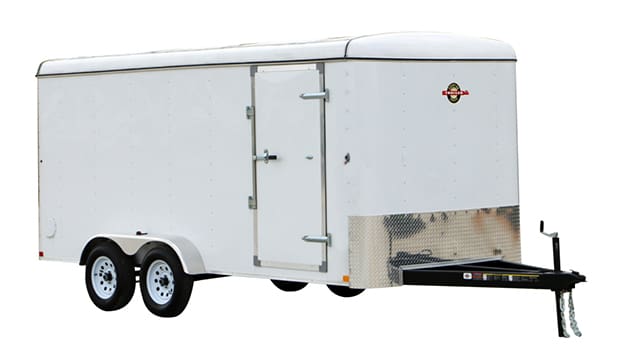

6' x 12' 7K Radius Front Rounded Roof Tandem Axle
  • Model: 6X12CGR7K
  • Overall W x L: 102" x 192"
  • Gate W x H: ?" x ?"
  • Empty Weight: 2,200 lbs.
  • Payload Capacity: 4,800 lbs.
7' x 14' 7K Radius Front Rounded Roof Tandem Axle
  • Model: 7X14CGR
  • Overall W x L: 102" x 216"
  • Gate W x H: ?" x ?"
  • Empty Weight: 2,475 lbs.
  • Payload Capacity: 4,525 lbs.
7' x 16' 7K Radius Front Rounded Roof Tandem Axle
  • Model: 7X16CGR
  • Overall W x L: 102" x 246"
  • Gate W x H: ?" x ?"
  • Empty Weight: 2,490 lbs.
  • Payload Capacity: 4,510 lbs.

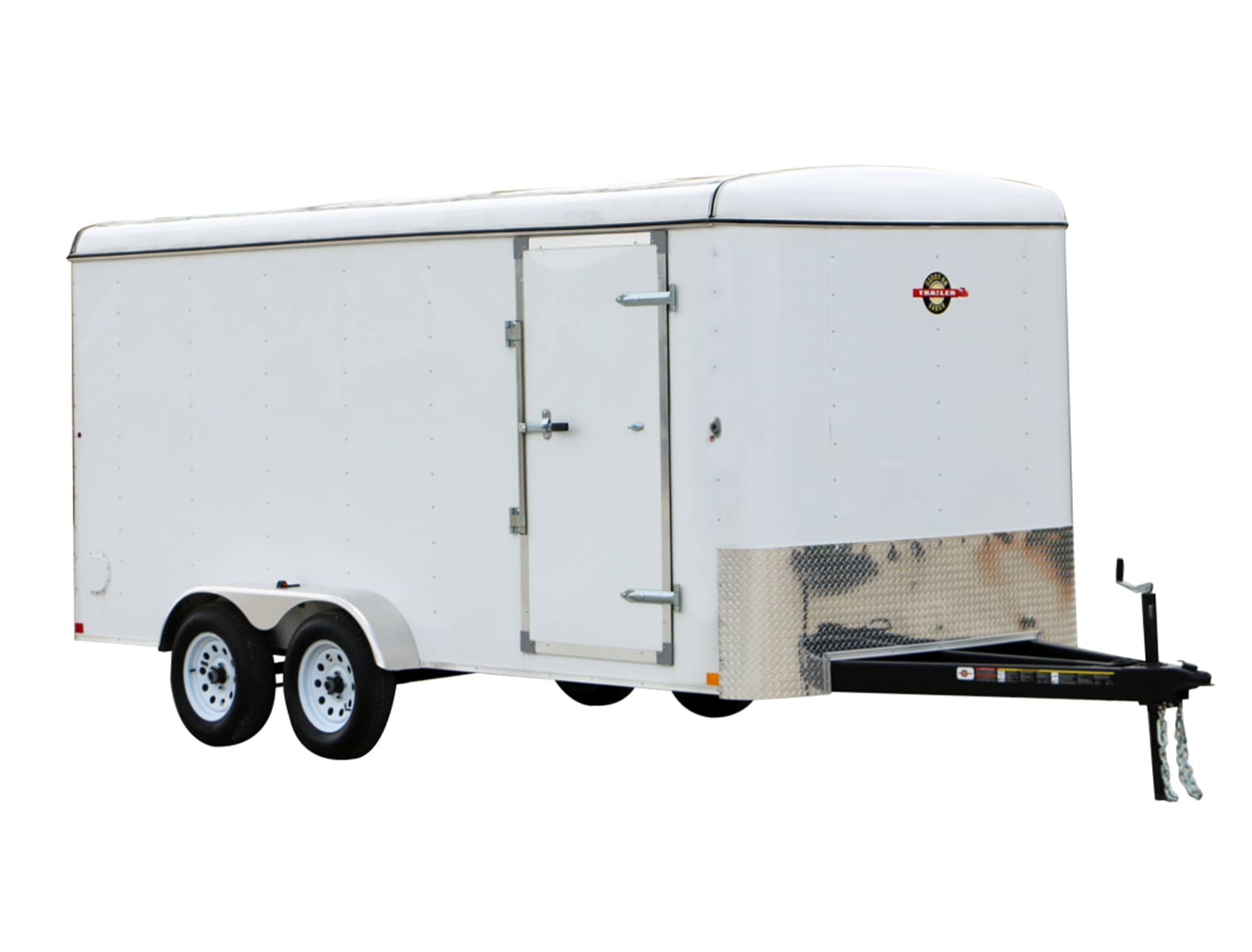

6' x 12' 7K Radius Front Rounded Roof Tandem Axle
  • Model: 6X12CG7K
  • Overall W x L: 91" x 192"
  • Gate W x H: ?" x ?"
  • Empty Weight: 2,200 lbs.
  • Payload Capacity: 4,800 lbs.

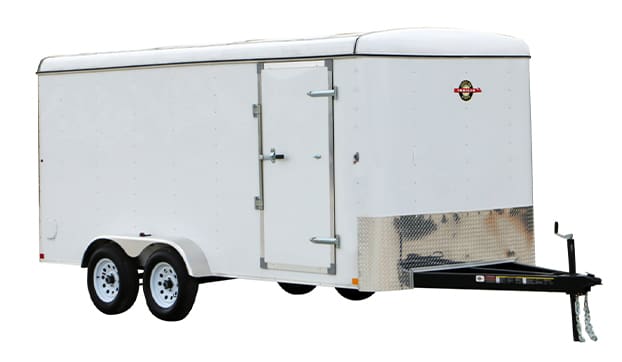

7' x 14' 7K Radius Front Rounded Roof Tandem Axle
  • Model: 7X14CG
  • Overall W x L: 102" x 216"
  • Gate W x H: ?" x ?"
  • Empty Weight: 2,425 lbs.
  • Payload Capacity: 4,575 lbs.
7' x 16' 7K Radius Front Rounded Roof Tandem Axle
  • Model: 7X16CG
  • Overall W x L: 102" x 246"
  • Gate W x H: ?" x ?"
  • Empty Weight: 2,490 lbs.
  • Payload Capacity: 4,510 lbs.

Find your trailer in
a store near you

Arrow/ white
Find a Dealer

Features

ROUNDED ROOF

For enclosed trailers, a rounded roof is less susceptible to leaking and provides an extra level of protection against the elements. And when winter rolls around, snow and ice have a difficult time sticking on a rounded roof which helps shed unnecessary extra weight.

TANDEM AXLE

Carry more weight and feel confident doing it with a tandem axle. With an extra set of tires, a tandem axle enables a trailer to haul more weight during towing without losing stability—on city streets or at highway speed.

STORAGE SPACE

Need more storage? Then it's time for an enclosed trailer. Featuring enough room to securely transport whatever you need, safely and securely, it can also store gear to keep your garage or shop from getting cluttered. At home, the worksite, or the road, an enclosed trailer secures your belongings wherever you happen to be.
