Parts / Trailer Hub and Drum Assemblies

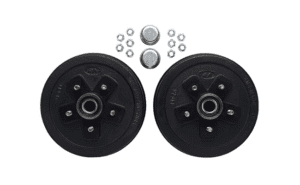

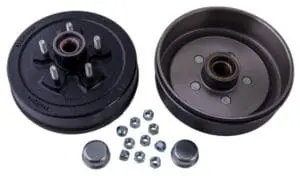

Trailer Hub and Drum Assemblies

Part Number:

605T

Arrow/ white
View Compatibility

Part Information:

  • 10" Diameter
  • 5 on 4.5" Bolt Pattern
  • Replacement hub and drum assemblies for one axle, rated up to 3,500 lbs.
  • Assembled with grease and complete with 1-3/8" inner bearing (L68149) and race, 1-1/16" outer bearing (L44649) and race, grease seal, and dust caps.
  • Package includes: (2) 10" brake drums, (10) lug nuts, (2) dust caps

Compatible Models:

7K Steel Floor Tandem Axle Car Hauler

  • 7X18SF2BRK
  • 7X18SF1BRK

7K Tandem Axle Car Hauler

  • 7X16CH2BRK
  • 7X18CH2BRK
  • 7X14CH1BRK
  • 7X16CH1BRK
  • 7X18CH1BRK

3K Utility Trailers

7K Tandem Axle Utility Trailer

  • 6X12GW2BRK
  • 6X12GWHS2BRK
  • 6X14GW2BRK
  • 6X16GW2BRK
  • 6X14GWHS2BRK
  • 6X16GWHS2BRK
  • 6X18GW2BRK
  • 6X12GW1BRK
  • 6X12GWHS1BRK
  • 6X14GW1BRK
  • 6X16GW1BRK
